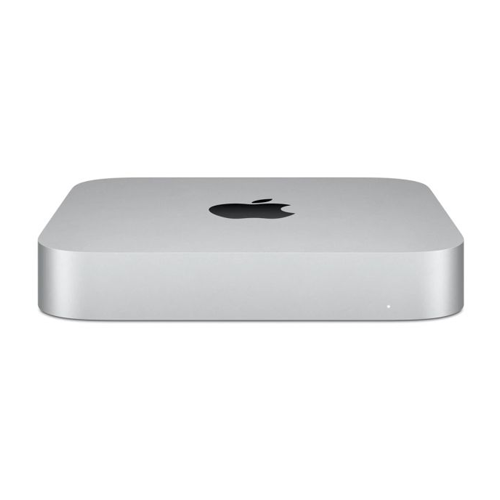

2.0GHz Mac Mini Server

Size and Weight

The perfect size for a server.

• Height: 1.4 inches (3.6 cm)

• Width: 7.7 inches (19.7 cm)

• Depth: 7.7 inches (19.7 cm)

• Weight: 3.0 pounds (1.37 kg)¹

Processor and Memory

Powered by a quad-core Intel Core i7 processor and DDR3 memory.

Processor

2.0GHz quad-core Intel Core i7 with 6MB on-chip shared L3 cache

Memory

4GB of 1333MHz DDR3 memory

Configurable to 8GB, only at the Apple Online Store.

Storage

Dual 500GB hard drives come standard.

Dual 500GB (7200-rpm) hard drives^

Configurable to dual 750GB (7200-rpm) hard drives, single or dual 256GB solid-state drives, or 256GB solid-state drive and 750GB (7200-rpm) hard drive, only at the Apple Online Store.

Graphics

Plenty of power for everyday tasks.

Intel HD Graphics 3000 processor with 384MB of DDR3 SDRAM shared with main memory

Video Support

Works with almost any display or HDTV.

• Thunderbolt port with support for up to 2560-by-1600 resolution

• HDMI port with support for up to 1920-by-1200 resolution

• DVI output using HDMI to DVI Adapter (included)

• Support for dual display and video mirroring

Audio

• Audio line in minijack (digital/analog)

• Audio line out/headphone minijack (digital/analog)

• HDMI port supports multichannel audio output

• Support for Apple iPhone headset with microphone

• Built-in speaker

Connections and Expansion

A new Thunderbolt port, an HDMI port, and plenty of peripheral ports.

• Thunderbolt port (up to 10 Gbps)

• FireWire 800 port (up to 800 Mbps)

• Four USB 2.0 ports (up to 480 Mbps)

• HDMI port

• SDXC card slot

• Gigabit Ethernet port

• Audio in/out

Communications

The latest Wi-Fi, Bluetooth, and Ethernet technologies.

Wi-Fi

802.11n Wi-Fi wireless networking; IEEE 802.11a/b/g compatible

Bluetooth

Bluetooth 4.0 wireless technology

Ethernet

10/100/1000BASE-T Ethernet (RJ-45 connector)

Electrical and Operating Requirements

• Line voltage: 100-240V AC

• Frequency: 50Hz to 60Hz, single phase

• Maximum continuous power: 85W

• Operating temperature: 50° to 95° F (10° to 35° C)

• Storage temperature: -40° to 116° F (-40° to 47° C)

• Relative humidity: 5% to 95% noncondensing

• Maximum altitude: 10,000 feet

• Typical acoustical performance

  • Sound pressure level (operator position): 17 dBA at idle
