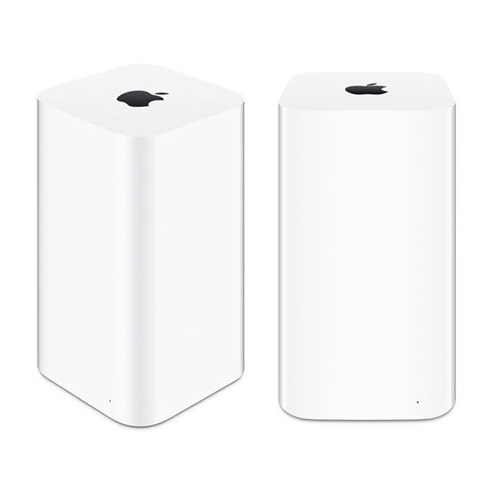

AirPort Extreme 6th Gen ME918LL/A Grade (B)

Dimensions: 3.85 inches (98 mm) by 3.85 inches (98 mm) by 6.6 inches (168 mm)

Weight: 2.08 pounds (945 grams)¹

IEEE 802.11a/b/g/n/ac

Six-element beamforming antenna array

Simultaneous dual-band 2.4GHz and 5GHz

Radio output power: 32.5 dBm maximum (varies by country)

Channels 1-11, 36-116, 132-140, and 149-165 approved for use in the United States and Canada

Channels 1-13, 36-64, and 100-140 approved for use in Europe and Japan

Channels 1-13, 36-64, and 149-165 approved for use in Australia, Hong Kong, and New Zealand

Interoperable with 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac-enabled Mac computers, iOS devices, Apple TV, Windows-based PCs, and other Wi-Fi devices

NAT, DHCP, PPPoE, VPN Passthrough (IPSec, PPTP, and L2TP), DNS Proxy, IPv6 (6to4 and manual tunnels)

Wi‑Fi Protected Access™ (WPA/WPA2)²

WPA/WPA2 Enterprise²

MAC address filtering

NAT firewall

802.1X, PEAP, LEAP, TTLS, TLS, FAST

Time-based access control

Printed documentation included

AirPort Utility for Mac available for free download

AirPort Utility for iOS available for free download

Bonjour for Windows available for free download

Simultaneous dual-band 802.11ac wireless

Gigabit Ethernet WAN port for connecting a DSL modem, cable modem, or Ethernet network

USB 2 port for connecting a USB printer or hard drive³

Three Gigabit Ethernet LAN ports for connecting a computer, Ethernet hub, or networked printer

Built-in power supply

50

100-240V AC, 50-60Hz; input current: 1.5 amp

Operating temperature: 32° to 95° F (0° to 35° C)

Storage temperature: -13° to 140° F (-25° to 60° C)

Relative humidity (operating): 20% to 80%, noncondensing

Operating altitude: tested up to 10,000 feet (3000 m)

Maximum storage altitude: 15,000 feet

FCC Part 15 Class B, Canada RSS-210, EN 300-328, EN 301-489, EN 301 893, ARIB STD-T66, RCR STD-T33, AS/NZS 4268: 2003, UL 60950, CSA-C22.2 No. 60950, GB 4943.1-2011

Setup and Administration

• iPhone, iPad, or iPod touch with iOS 6 or later and AirPort Utility 1.3

• Mac with OS X Lion v10.7.5 or later and AirPort Utility 6.3

Wireless Device Access

• Any Wi‑Fi-enabled device that uses the 802.11a/b/g/n/ac specification

Shared Printing with a USB Printer

• USB printer

• Mac with OS X v10.2.7 or later

• PC with Windows XP (SP3), Windows Vista (SP2), Windows 7 (SP1), or Windows 8

Shared USB Hard Drive

• Mac with OS X v10.4.8 or later

• PC with Windows XP (SP3), Windows Vista (SP2), Windows 7 (SP1), or Windows 8
