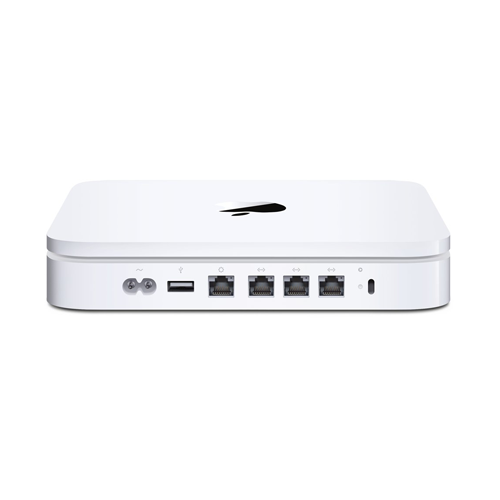

AirPort Time Capsule 4th Gen 3TB MD033LL/A Grade (C)

Size and weight

• Length: 7.7 inches (197 mm)

• Width: 7.7 inches (197 mm)

• Height: 1.4 inches (36.3 mm)

• Weight: 3.5 pounds (1.6 kg)¹

Security

• Wi-Fi Protected Access™ (WPA/WPA2)²

• Wireless security (WEP) configurable for 40-bit and 128-bit encryption

• MAC address filtering

• NAT firewall

• Support for RADIUS authentication

• 802.1X, PEAP, LEAP, TTLS, TLS, FAST

• Time-based access control

Electrical

• Line voltage: 100-240V AC

• Frequency: 50Hz to 60Hz, single phase

• Maximum continuous power: 34W

Agency approvals

• FCC Part 15 Class B, Canada RSS-210, EN 300-328, EN 301-489, EN 301 893, ARIB STD-T66, RCR STD-T33, AS/NZS 4268: 2003, UL 60950, CSA-C22.2 No. 60950

Storage

• 2TB or 3TB Serial ATA server-grade hard disk drive³

Interfaces

• One Gigabit Ethernet WAN port for connecting a DSL or cable modem

• Three Gigabit Ethernet LAN ports for connecting computers or network devices

• USB port for connecting a USB printer or USB external hard drive

• 802.11n wireless

Included in the box

• Time Capsule

• Power cord

• Printed documentation

Environmental requirements

• Operating temperature: 50° to 95° F (10° to 35° C)

• Storage temperature: -13° to 140° F (-25° to 60° C)

• Relative humidity (operational): 20% to 80% (noncondensing)

• Relative humidity (storage): 10% to 90%

• Maximum operating altitude: 10,000 feet

• Maximum storage altitude: 15,000 feet

Wireless protocols

• IEEE 802.11a/b/g/n

Compatibility

• Interoperable with Wi-Fi Certified 802.11a, 802.11b, 802.11g, or 802.11n enabled Mac computers, iPad, iPhone, iPod touch, and Windows-based PCs

• NAT, DHCP, PPPoE, VPN Passthrough (IPSec, PPTP, and L2TP), DNS Proxy, SNMP, IPv6 (6to4 and manual tunnels)

Frequency bands

• 2.4GHz and 5GHz simultaneously

Radio output power

• 20 dBm (nominal)

Channels

• Channels 1-11, 36-48, and 149-165 approved for use in the United States and Canada

• Channels 1-13, 36-64, and 100-140 approved for use in Japan

• Channels 1-13, 36-64, 100-112, and 132-140 approved for use in Europe

• Channels 1-13, 36-64, and 149-165 approved for use in Australia, Hong Kong, and New Zealand

System Requirements
