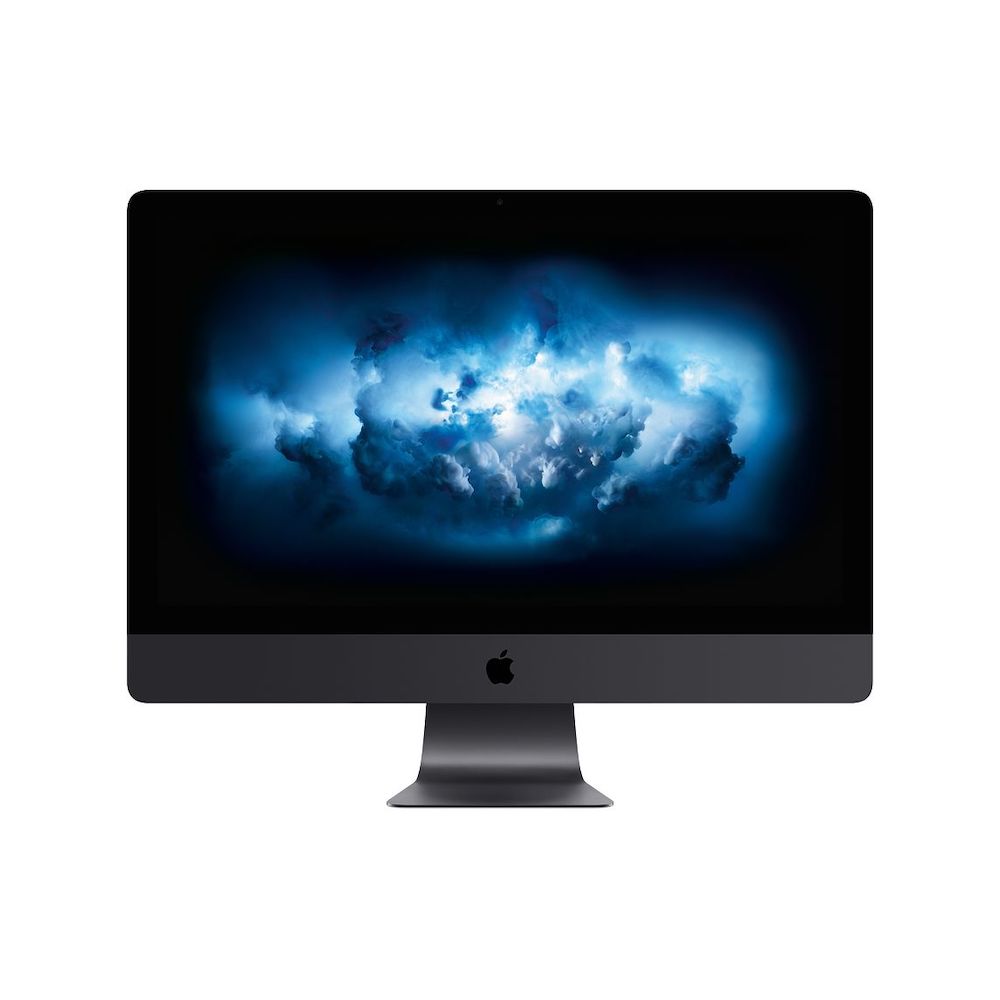

iMac Pro 27 inch 5K 2.5Ghz Intel Xeon W-2170B 14 Core 1TB SSD Late 2017 BTO/CTO Grade (A)

Condition: "A" - Excellent

TECH SPECS

iMac Pro (2017) - Technical Specifications

Display

  • 27-inch (diagonal) Retina 5K display

  • 5120‑by‑2880 resolution with support for one billion colors

  • 500 nits brightness

  • Wide color (P3)

Processor

  • 8-Core

    • 3.2GHz Intel Xeon W

    • Turbo Boost up to 4.2GHz

    • 19MB cache

  • 10-Core

    • 3.0GHz Intel Xeon W

    • Turbo Boost up to 4.5GHz

    • 23.75MB cache

Configurable to:

  • 14-Core

    • 2.5GHz Intel Xeon W

    • Turbo Boost up to 4.3GHz

    • 33.25MB cache

  • 18-Core

    • 2.3GHz Intel Xeon W

    • Turbo Boost up to 4.3GHz

    • 42.75MB cache

Graphics

  • Vega 56

    • Radeon Pro Vega 56 graphics processor

    • with 8GB of HBM2 memory

    • 56 compute units

    • 3584 stream processors

    • 9 teraflops single precision

    • 18 teraflops half precision

Configurable to:

  • Vega 64

    • Radeon Pro Vega 64 graphics processor

    • with 16GB of HBM2 memory

    • 64 compute units

    • 4096 stream processors

    • 11 teraflops single precision

    • 22 teraflops half precision

  • Vega 64X

    • Radeon Pro Vega 64X graphics processor

    • with 16GB of HBM2 memory

    • 64 compute units

    • 4096 stream processors

    • 12 teraflops single precision

    • 24 teraflops half precision

Memory

  • 32GB

    • 32GB of 2666MHz DDR4 ECC memory

    • Quad-channel memory controller

Configurable to:

  • 64GB

    • 64GB of 2666MHz DDR4 ECC memory

  • 128GB

    • 128GB of 2666MHz DDR4 ECC memory

  • 256GB

    • 256GB of 2666MHz DDR4 ECC memory

Storage1

  • 1TB SSD

Configurable to:

  • 2TB SSD

  • 4TB SSD

Video Support and Camera

  • 1080p FaceTime HD camera

  • Simultaneously supports full native resolution on the built-in display at 1 billion colors and:

    • Two 5120‑by‑2880 (5K) external displays at 60Hz with support for 1 billion colors, or

    • Four 3840-by-2160 (4K UHD) external displays at 60Hz with support for 1 billion colors, or

    • Four 4096‑by‑2304 (4K) external displays at 60Hz with support for millions of colors

  • Support for extended desktop and video mirroring modes

  • Thunderbolt 3 digital video output

  • Native DisplayPort output over USB-C

  • Thunderbolt 2, HDMI, DVI, and VGA output supported using adapters (sold separately)

Audio

  • Stereo speakers

  • Four microphones

  • 3.5 mm headphone jack

  • Support for “Hey Siri”

Connections and Expansion

  • Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ‑45 connector

  • SDXC card slot with support for UHS‑II

  • Four USB-A ports

  • Four Thunderbolt 3 (USB-C) ports with support for:

    • DisplayPort 1.2

    • Thunderbolt (up to 40Gb/s)

    • USB 3.1 Gen 2 (up to 10Gb/s)

    • Thunderbolt 2, HDMI, DVI, and VGA supported using adapters (sold separately)

Input

  • Space Gray Magic Keyboard with Numeric Keypad

  • Space Gray Magic Mouse 2

  • Optional Space Gray Magic Trackpad 2

Wireless

  • Wi-Fi

    • 802.11ac Wi-Fi wireless networking

    • IEEE 802.11a/b/g/n compatible

  • Bluetooth

    • Bluetooth 5.0 wireless technology

Size and Weight

  • Height: 20.3 inches (51.6 cm)

  • Width: 25.6 inches (65.0 cm)

  • Stand depth: 8 inches (20.3 cm)

  • Weight: 21.5 pounds (9.7 kg)2

Electrical and Operating Requirements

  • Line voltage: 100–240V AC

  • Frequency: 50Hz to 60Hz, single phase

  • Operating temperature: 50° to 95° F (10° to 35° C)

  • Relative humidity: 5% to 90% noncondensing

  • Operating altitude: tested up to 16,400 feet (5000 meters)

  • Typical acoustical performance: Sound pressure level (operator position): 13 dBA at idle3

Included in Package
*Included in Box OEM or Generic Compatible Keyboard, Mouse and AC Cable **Software/Apps Preinstalled: Most current MacOSx available for year model All Apple preinstalled Apps included with OSx version
