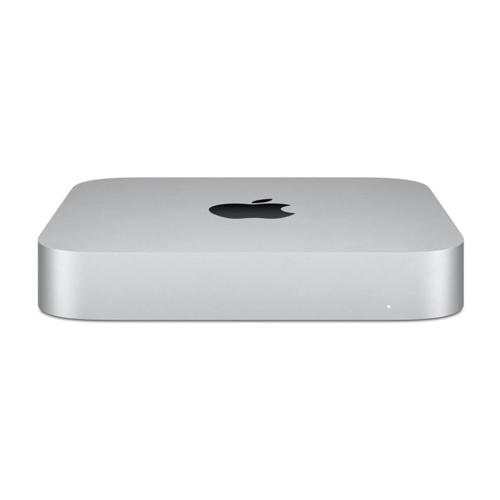

Mac mini 2.66GHz Intel Core 2 Duo 320GB MID 2010 BTO/CTO Grade (C)

Condition: "C" - Fair

TECH SPECS

Mac mini (Mid 2010) - Technical Specifications

Size and weight

  • Height: 1.4 inches (3.6 cm)

  • Width: 7.7 inches (19.7 cm)

  • Depth: 7.7 inches (19.7 cm)

  • Weight: 3.0 pounds (1.37 kg)

Processor and memory

  • 2.4GHz or 2.66GHz Intel Core 2 Duo processor

  • 3MB on-chip shared L2 cache

  • 1066MHz frontside bus

  • 2GB (two 1GB SO-DIMMs) of 1066MHz DDR3 SDRAM; two SO-DIMM slots support up to 8GB

Environmental Status Report

Mac mini is designed with the following features to reduce its environmental impact:

  • BFR-free

  • PVC-free

  • Highly recyclable aluminum enclosure

  • Meets ENERGY STAR 5.0 requirements

  • Rated EPEAT Gold

Acoustic Performance

DECLARED NOISE EMISSIONS in accordance with ISO 9296

Sound Power Level

LWAd(B)

1 B = 10 dB

Sound Pressure Level

Operator Position

LpAm(dB)

2.4 GHz

2.66 GHz

2.4 GHz

2.66 GHz

Idle

2.7

2.9

13

15

Hard drive accessing

2.7

2.9

14

15

CD drive accessing

3.0

no value

20

no value

  1. LWAdis the statistical upper-limit A-weighted sound power level (rounded to the nearest 0.1 B).

  2. LpAmis the mean A-weighted sound pressure level measured at the operator position (rounded to the nearest dB).

  3. 1 B (bel) = 10 dB (decibel).

Peripheral connections

  • One FireWire 800 port (up to 800 Mbps)

  • Four USB 2.0 ports (up to 480 Mbps)

  • SD card slot

Graphics and video support

  • NVIDIA GeForce 320M graphics processor with 256MB of DDR3 SDRAM shared with main memory

  • Mini DisplayPort with support for up to 2560-by-1600 resolution

  • HDMI port with support for up to 1920-by-1200 resolution

  • DVI output using HDMI to DVI Adapter (included)

  • VGA output using Mini DisplayPort to VGA Adapter (sold separately)

  • Support for extended desktop and video mirroring across both ports

Communications

  • AirPort Extreme 802.11n Wi-Fi wireless networking; IEEE 802.11a/b/g compatible

  • Bluetooth 2.1 + EDR (Enhanced Data Rate) wireless technology

  • 10/100/1000BASE-T Ethernet (RJ-45) interface with support for jumbo frames

Audio

  • Audio line in minijack (digital/analog)

  • Audio line out/headphone minijack (digital/analog)

  • HDMI port supports multichannel audio output

  • Support for Apple iPhone headset with microphone

Storage

  • 320GB or 500GB Serial ATA hard disk drive

  • 8x slot-loading SuperDrive (DVD±R DL/DVD±RW/CD-RW)

    • Maximum read: 8x DVD-R, DVD+R, DVD-ROM, DVD-ROM (double layer DVD-9), DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW, and DVD+RW; 24x CD

    • Maximum write: 8x DVD-R, DVD+R; 6x DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW; 8x DVD+RW; 24x CD-R; 24x CD-RW

Configurable options

Optional Processor

Apple Online Store only

Optional Drive

Apple Online Store only

Standard Memory

Optional Memory

Apple Online Store only

Mac mini

2.4 GHz: 320 GB

2.66 GHz

500 GB

2 GB

4 GB

8 GB

Electrical and operating requirements

  • Line voltage: 100-240V AC

  • Frequency: 50Hz to 60Hz, single phase

  • Maximum continuous power: 85W

  • Operating temperature: 50° to 95° F (10° to 35° C)

  • Storage temperature: -40° to 116° F (-40° to 47° C)

  • Relative humidity: 5% to 95% noncondensing

  • Maximum altitude: 10,000 feet

  • Typical acoustical performance

    • Sound pressure level (operator position): 14 dBA at idle

Included in Package
*Included in Box OEM or generic compatible AC adapter cable **Software/Apps Preinstalled: Most current MacOSx available for year model All Apple preinstalled Apps included with OSx version
