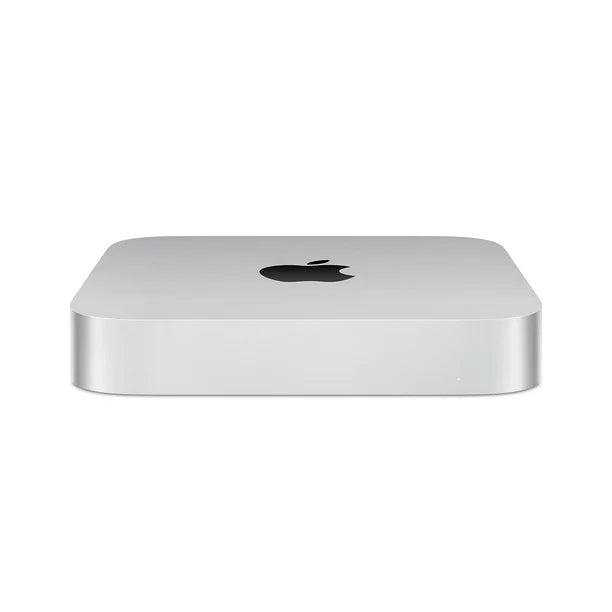

Mac Mini M2 Pro 3.49Ghz 12-Core CPU/19-Core GPU 512GB 2023 BTO (A)

Condition: "A" - Excellent

TECH SPECS

Mac mini (2023) - Technical Specifications

Year introduced : 2023

Finish

  • Silver

Chip

Apple M2 chip

  • 8-core CPU with 4 performance cores and 4 efficiency cores

  • 10-core GPU

  • 16-core Neural Engine

  • 100GB/s memory bandwidth

  • Media engine

    • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

    • Video decode engine

    • Video encode engine

    • ProRes encode and decode engine

Apple M2 Pro chip

  • 10-core CPU with 6 performance cores and 4 efficiency cores

  • 16-core GPU

  • 16-core Neural Engine

  • 200GB/s memory bandwidth

  • Media engine

    • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

    • Video decode engine

    • Video encode engine

    • ProRes encode and decode engine

  • Configurable to:

    • M2 Pro with 12-core CPU and 19-core GPU

Memory

Apple M2 chip

  • 8GB unified memory

    • Configurable to: 16GB or 24GB

Apple M2 Pro chip

  • 16GB unified memory

    • Configurable to: 32GB

Storage

Apple M2 chip

  • 256GB SSD

    • Configurable to: 512GB, 1TB, or 2TB

Apple M2 Pro chip

  • 512GB SSD

    • Configurable to: 1TB, 2TB, 4TB, or 8TB

Display Support

Apple M2 chip

  • Simultaneously supports up to two displays:

    • One display with up to 6K resolution at 60Hz over Thunderbolt and one display with up to 5K resolution at 60Hz over Thunderbolt or 4K resolution at 60Hz over HDMI

  • Thunderbolt 4 digital video output

    • Support for native DisplayPort output over USB‑C

  • HDMI display video output

    • Support for one display with up to 4K resolution at 60Hz

Apple M2 Pro chip

  • Simultaneously supports up to three displays:

    • Up to three displays: Two displays with up to 6K resolution at 60Hz over Thunderbolt and one display with up to 4K resolution at 60Hz over HDMI

    • Up to two displays: One display with up to 6K resolution at 60Hz over Thunderbolt and one display with up to 4K resolution at 144Hz over HDMI

    • One display with up to 8K resolution at 60Hz or 4K resolution at 240Hz over HDMI

  • Thunderbolt 4 digital video output

    • Support for native DisplayPort output over USB‑C

  • HDMI display video output

    • Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz

Video Playback

  • Supported formats include HEVC, H.264, and ProRes

  • HDR with Dolby Vision, HDR10, and HLG

Audio Playback

  • Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos

Audio

  • Built-in speaker

  • 3.5 mm headphone jack with advanced support for high-impedance headphones

  • HDMI port supports multichannel audio output

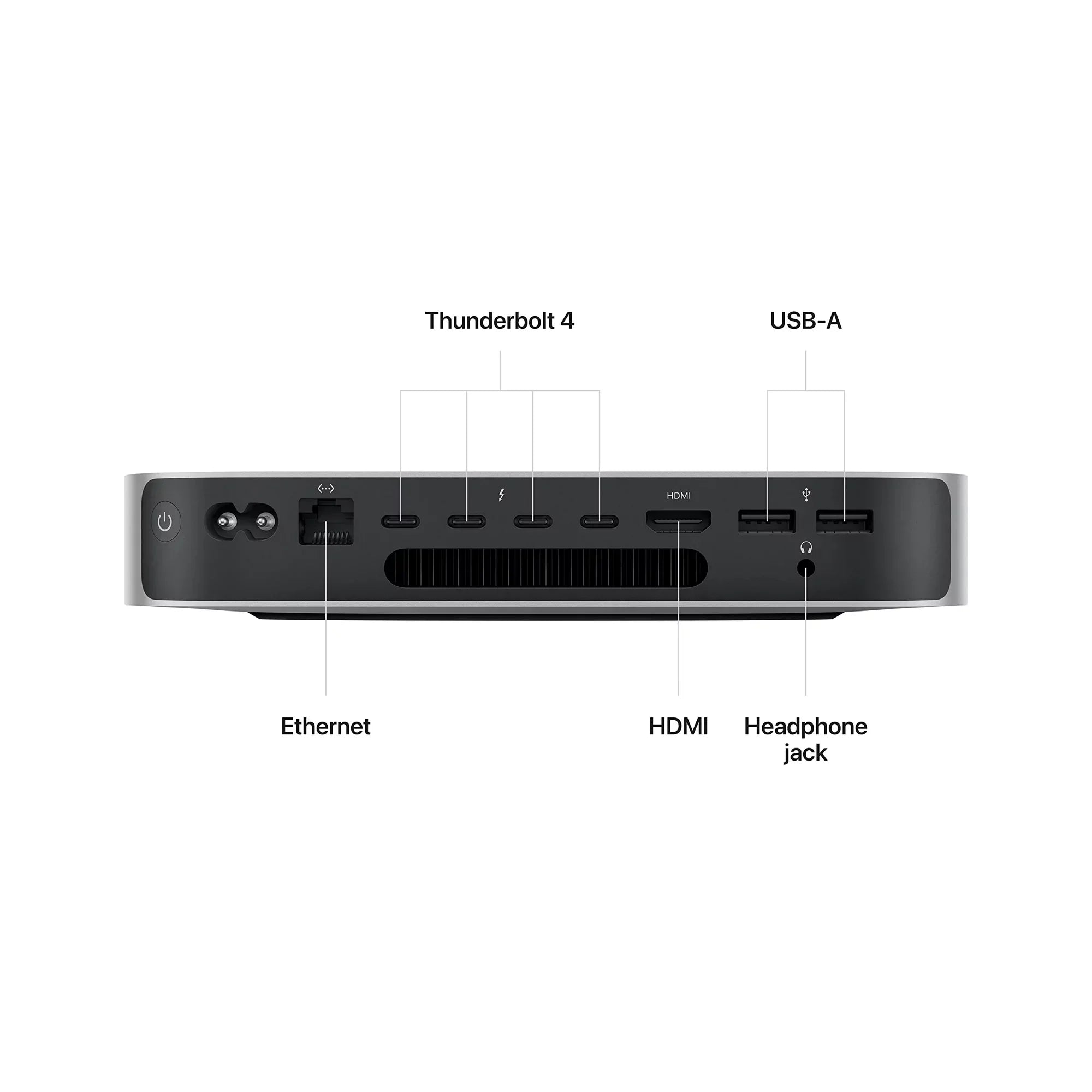

Connections and Expansion

  • Two Thunderbolt 4 ports (M2) or four Thunderbolt 4 ports (M2 Pro) with support for:

    • DisplayPort

    • Thunderbolt 4 (up to 40Gb/s)

    • USB 4 (up to 40Gb/s)

    • USB 3.1 Gen 2 (up to 10Gb/s)

    • Thunderbolt 2, HDMI, DVI, and VGA supported using adapters (sold separately)

  • Two USB-A ports (up to 5Gb/s)

  • HDMI port

  • Gigabit Ethernet port (configurable to 10Gb Ethernet)

  • 3.5 mm headphone jack

Communications

Wi-Fi

  • Wi-Fi 6E (802.11ax)

Bluetooth

  • Bluetooth 5.3

Ethernet

  • 10/100/1000BASE-T Gigabit Ethernet (RJ-45 connector)

  • Configurable to 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Size and Weight

  • Height: 1.41 inches (3.58 cm)

  • Width: 7.75 inches (19.70 cm)

  • Depth: 7.75 inches (19.70 cm)

  • Weight (M2): 2.6 pounds (1.18 kg)

  • Weight (M2 Pro): 2.8 pounds (1.28 kg)

Electrical and Operating Requirements

  • Line voltage: 100–240V AC

  • Frequency: 50Hz to 60Hz, single phase

  • Maximum continuous power (M2): 150W

  • Maximum continuous power (M2 Pro): 185W

  • Operating temperature: 50° to 95° F (10° to 35° C)

  • Storage temperature: –40° to 116° F (–40° to 47° C)

  • Relative humidity: 5% to 90% noncondensing

  • Operating altitude: tested up to 16,400 feet (5000 meters)

  • Typical acoustical performance: Sound pressure level (operator position): 5 dBA at idle

Included in Package
*Included in Box OEM or generic compatible AC adapter cable **Software/Apps Preinstalled: Most current MacOSx available for year model All Apple preinstalled Apps included with OSx version
