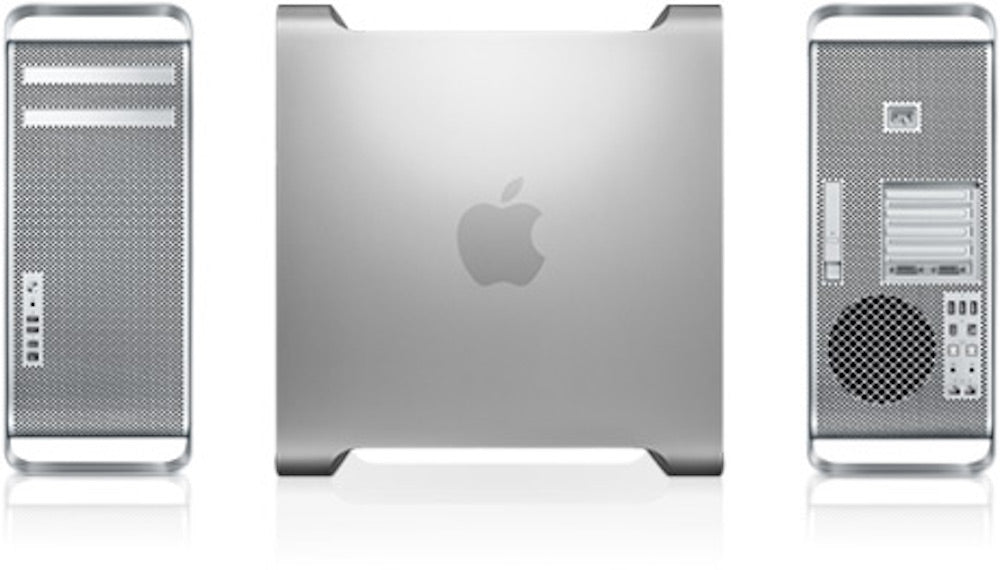

Mac Pro Two 2.66Ghz 6-Core Intel Xeon Westmere Two 1TB Mid 2012 BTO/CTO Grade (C)

Size and weight

• Height:20.1inches (51.1 cm)

• Width:8.1inches (20.6 cm)

• Depth:18.7inches (47.5 cm)

• Weight:

  • 12-core41.2pounds (18.7 kg)¹

  • Quad-core39.9pounds (18.1 kg)¹

Processing

• 12-core (standard configuration)

  • Two 2.4GHz 6-Core Intel Xeon E5645 processors

  • 12MB of fully shared L3 cache per processor

  • Turbo Boost dynamic performance up to 2.67GHz

  • Hyper-Threading technology for up to 24 virtual cores

• Quad-core (standard configuration)

  • One 3.2GHz Quad-Core Intel Xeon W3565 processor

  • 8MB of fully shared L3 cache per processor

  • Turbo Boost dynamic performance up to 3.46GHz

  • Hyper-Threading technology for up to 8 virtual cores

• Advanced Intel microarchitecture

  • Integrated memory controller

  • 128-bit SSE4 SIMD engine

  • 64-bit data paths and registers

  • Optimized for energy efficiency

Configure your Mac Pro now, only at theApple Online Store.

Connections and audio

• Four FireWire 800 ports (two on front panel, two on back panel)

• Five USB 2.0 ports (two on front panel, three on back panel)

• Two USB 2.0 ports on included keyboard

• Front-panel headphone minijack and internal speaker

• Optical digital audio input and output TOSLINK ports

• Analog stereo line-level input and output minijacks

• Multichannel audio through Mini DisplayPort

Graphics and displays

• Double-wide, 16-lane PCI Express 2.0 graphics slot with one of the following graphics cards installed:

  • ATI Radeon HD 5770 with 1GB of GDDR5 memory, PCI Express 2.0, two Mini DisplayPort outputs, and one dual-link DVI port

  • ATI Radeon HD 5870 with 1GB of GDDR5 memory, PCI Express 2.0, two Mini DisplayPort outputs, and one dual-link DVI port

• Option to install two ATI Radeon HD 5770 cards

• Support for up to six displays²

• Support for digital resolutions up to 2560 by 1600 pixels

• Support for analog resolutions up to 2048 by 1536 pixels

• Video adapters available for:

  • Additional DVI output using Mini DisplayPort to DVI Adapter (optional)

  • Additional dual-link DVI output using Mini DisplayPort to Dual-Link DVI Adapter (optional)

  • VGA output using Mini DisplayPort to VGA Adapter or DVI to VGA Display Adapter (optional)

Memory

• Dual-processor systems

  • 2.4GHz, 2.66GHz, and 3.06GHz systems: 1333MHz DDR3 ECC SDRAM

  • Eight memory slots (four per processor) supporting up to 64GB of main memory using 1GB, 2GB, 4GB, or 8GB DIMMs

• Single-processor systems

  • 3.2GHz system: 1066MHz DDR3 ECC SDRAM

  • 3.33GHz system: 1333MHz DDR3 ECC SDRAM

  • Four memory slots supporting up to 32GB of main memory using 1GB, 2GB, 4GB, or 8GB DIMMs

Communications

• Built-in AirPort Extreme 802.11n Wi-Fi wireless networking;³IEEE 802.11a/b/g compatible

• Bluetooth 2.1 + Enhanced Data Rate (EDR) wireless technology

• Two independent 10/100/1000BASE-T Ethernet (RJ-45) interfaces with support for jumbo frames

Environmental Status Report

• BFR-free

• PVC-free (internal cables)

• Highly recyclable aluminum enclosure

• Meets ENERGY STAR 5.2 requirements⁴

• Rated EPEAT Gold⁵

Acoustic Performance

DECLARED NOISE EMISSIONS in accordance with ISO 9296

1. L_WAdis the statistical upper-limit A-weighted sound power level (rounded to the nearest 0.1 B).

2. L_pAmis the mean A-weighted sound pressure level measured at the operator position (rounded to the nearest dB).

3. 1 B (bel) = 10 dB (decibel).

Electrical and operating requirements

• Line voltage: 100-120V AC or 200-240V AC (wide-range power supply input voltage)

• Frequency: 50Hz to 60Hz single phase

• Current: Maximum of 12A (low-voltage range) or 5A (high-voltage range)

• Operating temperature: 50° to 95° F (10° to 35° C)

• Storage temperature: -40° to 116° F (-40° to 47° C)

• Relative humidity: 5% to 95% noncondensing

• Maximum operating altitude: 10,000 feet

PCI Express expansion

• Three open full-length PCI Express expansion slots⁶

  • One PCI Express 2.0 x16 slot

  • Two PCI Express 2.0 x4 slots

• All slots provide mechanical support for 16-lane cards

• 300W combined maximum for all PCI Express slots

Storage

• Four 3.5-inch cable-free, direct-attach drive bays with built-in independent 3Gb/s Serial ATA channels; four internal drive carriers included

• Up to 8TB of internal storage⁷in bays 1 through 4 using hard drives or solid-state drives in the following capacities:

  • 1TB or 2TB hard drives, Serial ATA 3Gb/s, 7200 rpm, 32MB cache

  • 512GB solid-state drive, Serial ATA 3Gb/s

• 18x SuperDrive with double-layer support (DVD±R DL/DVD±RW/CD-RW)

  • Writes DVD+R and DVD-R discs at up to 18x speed

  • Writes DVD+R DL and DVD-R DL discs at up to 8x speed

  • Writes DVD+RW discs at up to 8x speed

  • Writes DVD-RW discs at up to 6x speed

  • Reads DVDs at up to 18x speed

  • Writes CD-R and CD-RW discs at up to 32x speed

  • Reads CDs at up to 32x speed

• One open optical drive bay for optional second SuperDrive
