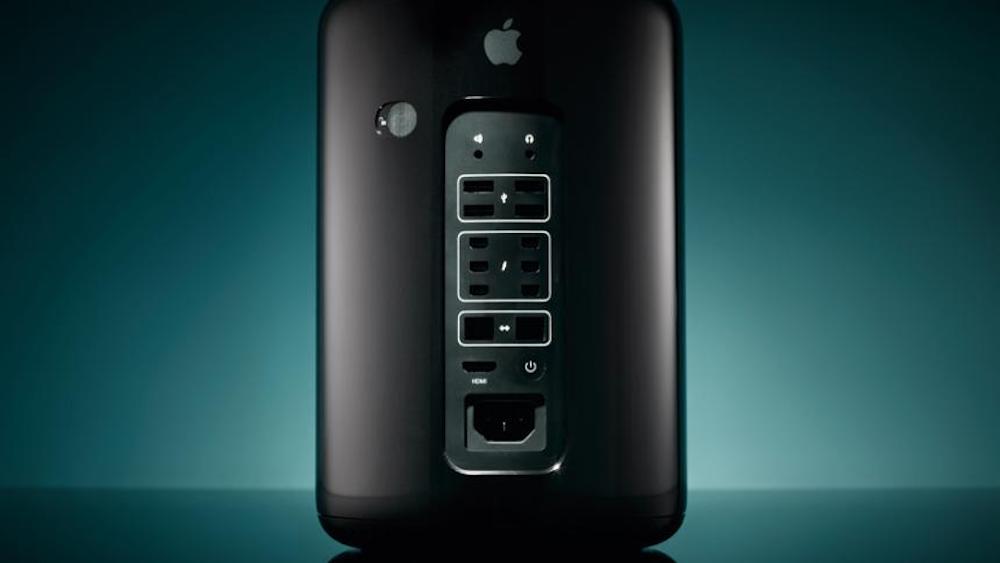

Mac Pro 3.7GHz Quad-Core Intel Xeon E5-1620v2 256GB SSD Late 2013 ME253LL/A Grade (C)

Height: 9.9 in

Diameter: 6.6 in

Weight: 11 lb¹

3.7GHz Quad-Core

• • Intel Xeon E5 with 10MB L3 cache and Turbo Boost up to 3.9GHz

    • Configurable to 3.5GHz 6-core processor with 12MB L3 cache, 3.0GHz 8-core processor with 25MB L3 cache, or 2.7GHz 12-core processor with 30MB L3 cache

3.5GHz 6-Core

• • Intel Xeon E5 with 12MB L3 cache and Turbo Boost up to 3.9GHz

    • Configurable to 3.0GHz 8-core processor with 25MB L3 cache or 2.7GHz 12-core processor with 30MB L3 cache

3.0GHz 8-Core

• • Intel Xeon E5 with 25MB L3 cache and Turbo Boost up to 3.9GHz

    • Configurable to 2.7GHz 12-core processor with 30MB L3 cache

3.7GHz Quad-Core

• • 12GB (three 4GB) of 1866MHz DDR3 ECC memory

    • Configurable to 16GB (four 4GB), 32GB (four 8GB) or 64GB (four 16GB)

3.5GHz 6-Core

• • 16GB (four 4GB) of 1866MHz DDR3 ECC memory

    • Configurable to 32GB (four 8GB) or 64GB (four 16GB)

3.0GHz 8-Core

• • 16GB (four 4GB) of 1866MHz DDR3 ECC memory

    • Configurable to 32GB (four 8GB) or 64GB (four 16GB)

3.7GHz Quad-Core

• • Dual AMD FirePro D300 graphics processors with 2GB of GDDR5 VRAM each

    • • 1280 stream processors

      • 256-bit-wide memory bus

      • 160GB/s memory bandwidth

      • 2 teraflops performance

        • Configurable to dual AMD FirePro D500, each with 3GB GDDR5 VRAM, 1526 stream processors, 384-bit-wide memory bus, 240GB/s memory bandwidth, and 2.2 teraflops performance; or dual AMD FirePro D700, each with 6GB of GDDR5 VRAM, 2048 stream processors, 384-bit-wide memory bus, 264GB/s memory bandwidth, and 3.5 teraflops performance

3.5GHz 6-Core

• • Dual AMD FirePro D500 graphics processors with 3GB of GDDR5 VRAM each

    • • 1526 stream processors

      • 384-bit-wide memory bus

      • 240GB/s memory bandwidth

      • 2.2 teraflops performance

        • Configurable to dual AMD FirePro D700, each with 6GB of GDDR5 VRAM, 2048 stream processors, 384-bit-wide memory bus, 264GB/s memory bandwidth, and 3.5 teraflops performance

3.0GHz 8-Core

• Dual AMD FirePro D700 graphics processors with 6GB of GDDR5 VRAM each

  • 2048 stream processors

  • 384-bit-wide memory bus

  • 264GB/s memory bandwidth

  • 3.5 teraflops performance

Connect up to:

• Three dual-cable 5K displays

• Six Thunderbolt displays

256GB

PCIe-based SSD

• Configurable to 512GB or 1TB²

Combined optical digital audio output/analog line out minijack

3.5 mm headphone jack with headset support

HDMI port supports multichannel audio output

Built-in speaker

4 USB 3

6 Thunderbolt 2

Dual Gigabit Ethernet

HDMI 1.4 Ultra HD

802.11ac Wi-Fi wireless networking;³IEEE 802.11a/b/g/n compatible

Bluetooth 4.0 wireless technology

Line voltage: 100-240V AC

Frequency: 50Hz to 60Hz, single phase

Maximum continuous power: 450W

Operating temperature: 50° to 95° F (10° to 35° C)

Relative humidity: 5% to 95% noncondensing

Maximum altitude: 16,400 feet (5000 meters)

Typical acoustical performance, sound pressure level (operator position): 12 dBA at idle
