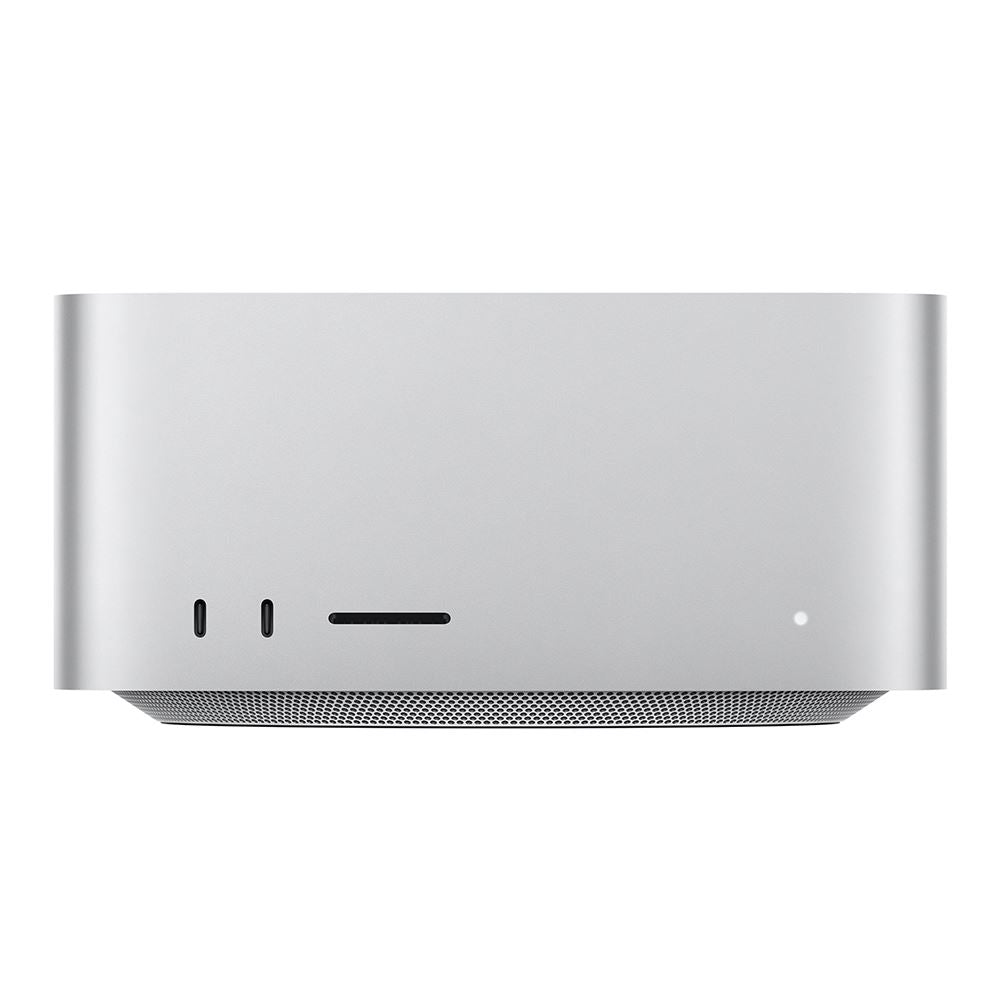

Mac Studio M1 Max 10-Core 3.2 CPU/24-Core GPU 32GB 512GB 2022 MJMV3LL/A Grade (A)

Condition: "A" - Excellent


Mac Studio (2022) - Technical Specifications

Year introduced: 2022

Identify your Mac Studio model


  • Silver


Apple M1 Max chip

  • 10-core CPU with 8 performance cores and 2 efficiency cores

  • 24-core GPU

  • 16-core Neural Engine

  • 400GB/s memory bandwidth

  • Media engine

    • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

    • Video decode engine

    • Two video encode engines

    • Two ProRes encode and decode engines

  • Configurable to:

    • M1 Max with 10-core CPU, 32-core GPU, and 16-core Neural Engine

Apple M1 Ultra chip

  • 20-core CPU with 16 performance cores and 4 efficiency cores

  • 48-core GPU

  • 32-core Neural Engine

  • 800GB/s memory bandwidth

  • Media engine

    • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

    • Two video decode engines

    • Four video encode engines

    • Four ProRes encode and decode engines

  • Configurable to:

    • M1 Ultra with 20-core CPU, 64-core GPU, and 32-core Neural Engine


Apple M1 Max chip

  • 32GB unified memory

    • Configurable to 64GB

Apple M1 Ultra chip

  • 64GB unified memory

    • Configurable to 128GB


Apple M1 Max chip

  • 512GB SSD

    • Configurable to 1TB, 2TB, 4TB, or 8TB

Apple M1 Ultra chip

  • 1TB SSD

    • Configurable to 2TB, 4TB, or 8TB

Video Support

Simultaneously supports up to five displays:

  • Support for up to four Pro Display XDRs (6K resolution at 60Hz and over a billion colors) over USB-C and one 4K display (4K resolution at 60Hz and over a billion colors) over HDMI

Thunderbolt 4 digital video output supports

  • Native DisplayPort output over USB‑C

  • Thunderbolt 2, DVI, and VGA output supported using adapters (sold separately)

HDMI display video output

  • Support for one display with up to 4K resolution at 60Hz

  • DVI output using HDMI to DVI Adapter (sold separately)


  • Built-in speaker

  • 3.5 mm headphone jack with advanced support for high-impedance headphones

  • HDMI port supports multichannel audio output

Connections and Expansion

No alt supplied for Image
No alt supplied for Image
  • Four Thunderbolt 4 ports with support for:

    • Thunderbolt 4 (up to 40Gb/s)

    • DisplayPort

    • USB 4 (up to 40Gb/s)

    • USB 3.1 Gen 2 (up to 10Gb/s)

    • Two USB-A ports (up to 5Gb/s)

    • HDMI port

    • 10Gb Ethernet

    • 3.5 mm headphone jack

  • On front (M1 Max):

    • Two USB-C ports (up to 10Gb/s)

    • SDXC card slot (UHS-II)

  • On front (M1 Ultra):

    • Two Thunderbolt 4 ports (up to 40Gb/s)

    • SDXC card slot (UHS-II)



  • 802.11ax Wi-Fi 6 wireless networking

  • IEEE 802.11a/b/g/n/ac compatible


  • Bluetooth 5.0 wireless technology


  • 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Size and Weight

  • Height: 3.7 inches (9.5 cm)

  • Width: 7.7 inches (19.7 cm)

  • Depth: 7.7 inches (19.7 cm)

  • Weight (M1 Max): 5.9 pounds (2.7 kg)2

  • Weight (M1 Ultra): 7.9 pounds (3.6 kg)2

Electrical and Operating Requirements

  • Line voltage: 100–240V AC

  • Frequency: 50Hz to 60Hz, single phase

  • Maximum continuous power: 370W

  • Operating temperature: 50° to 95° F (10° to 35° C)

  • Storage temperature: –40° to 116° F (–40° to 47° C)

  • Relative humidity: 5% to 90% noncondensing

  • Operating altitude: tested up to 16,400 feet (5000 meters)

Included in Package
*Included in Box OEM or generic compatible AC adapter cable **Software/Apps Preinstalled: Most current MacOSx available for year model All Apple preinstalled Apps included with OSx version
