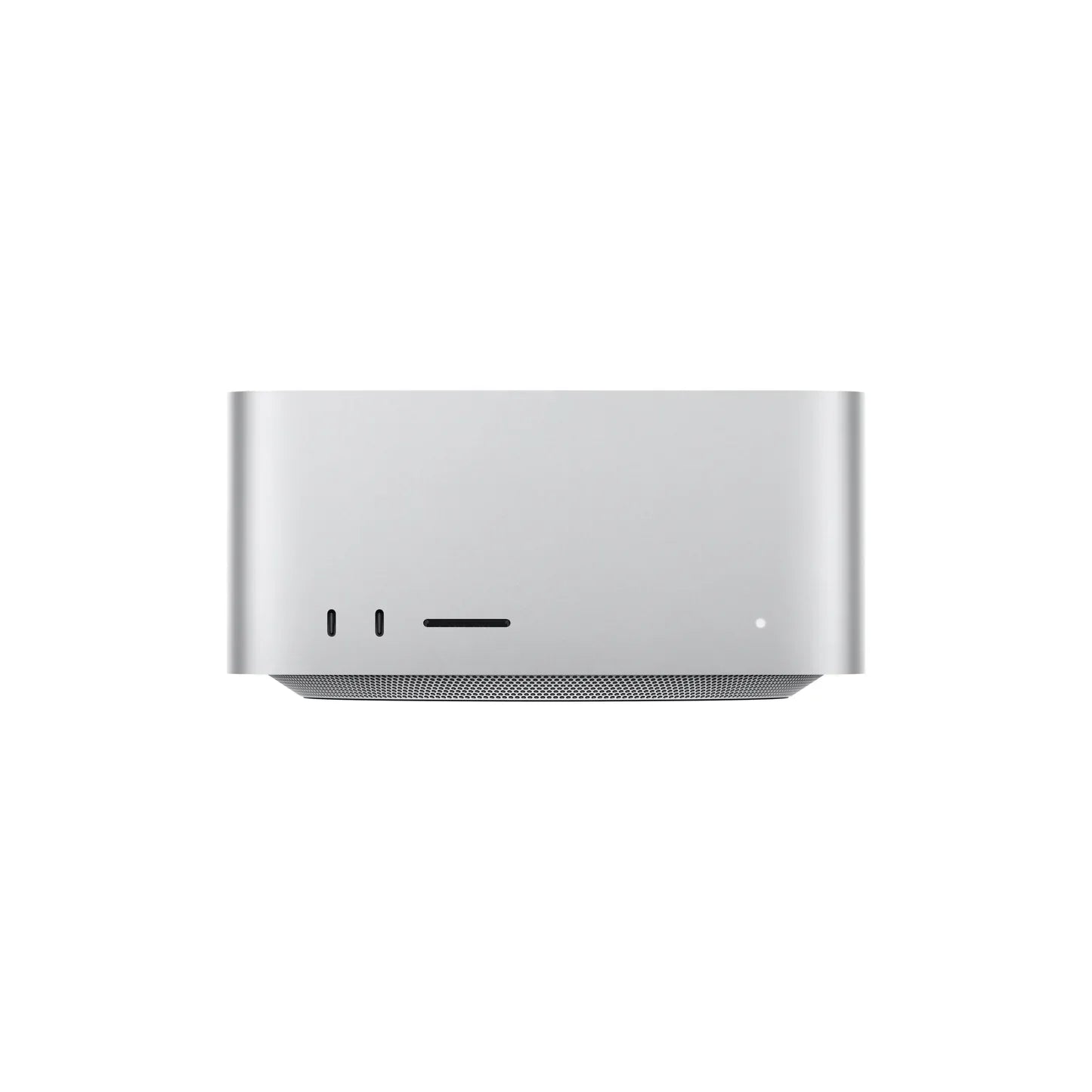

Mac Studio (2022) - Technical Specifications

Year introduced: 2022

Identify your Mac Studio model

Finish

• Silver

Chip

Apple M1 Max chip

• 10-core CPU with 8 performance cores and 2 efficiency cores

• 24-core GPU

• 16-core Neural Engine

• 400GB/s memory bandwidth

• Media engine

  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

  • Video decode engine

  • Two video encode engines

  • Two ProRes encode and decode engines

• Configurable to:

  • M1 Max with 10-core CPU, 32-core GPU, and 16-core Neural Engine

Apple M1 Ultra chip

• 20-core CPU with 16 performance cores and 4 efficiency cores

• 48-core GPU

• 32-core Neural Engine

• 800GB/s memory bandwidth

• Media engine

  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

  • Two video decode engines

  • Four video encode engines

  • Four ProRes encode and decode engines

• Configurable to:

  • M1 Ultra with 20-core CPU, 64-core GPU, and 32-core Neural Engine

Memory

Apple M1 Max chip

• 32GB unified memory

  • Configurable to 64GB

Apple M1 Ultra chip

• 64GB unified memory

  • Configurable to 128GB

Storage¹

Apple M1 Max chip

• 512GB SSD

  • Configurable to 1TB, 2TB, 4TB, or 8TB

Apple M1 Ultra chip

• 1TB SSD

  • Configurable to 2TB, 4TB, or 8TB

Video Support

Simultaneously supports up to five displays:

• Support for up to four Pro Display XDRs (6K resolution at 60Hz and over a billion colors) over USB-C and one 4K display (4K resolution at 60Hz and over a billion colors) over HDMI

Thunderbolt 4 digital video output supports

• Native DisplayPort output over USB‑C

• Thunderbolt 2, DVI, and VGA output supported using adapters (sold separately)

HDMI display video output

• Support for one display with up to 4K resolution at 60Hz

• DVI output using HDMI to DVI Adapter (sold separately)

Audio

• Built-in speaker

• 3.5 mm headphone jack with advanced support for high-impedance headphones

• HDMI port supports multichannel audio output

Connections and Expansion

• Four Thunderbolt 4 ports with support for:

  • Thunderbolt 4 (up to 40Gb/s)

  • DisplayPort

  • USB 4 (up to 40Gb/s)

  • USB 3.1 Gen 2 (up to 10Gb/s)

  • Two USB-A ports (up to 5Gb/s)

  • HDMI port

  • 10Gb Ethernet

  • 3.5 mm headphone jack

• On front (M1 Max):

  • Two USB-C ports (up to 10Gb/s)

  • SDXC card slot (UHS-II)

• On front (M1 Ultra):

  • Two Thunderbolt 4 ports (up to 40Gb/s)

  • SDXC card slot (UHS-II)

Communications

Wi-Fi

• 802.11ax Wi-Fi 6 wireless networking

• IEEE 802.11a/b/g/n/ac compatible

Bluetooth

• Bluetooth 5.0 wireless technology

Ethernet

• 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Size and Weight

• Height: 3.7 inches (9.5 cm)

• Width: 7.7 inches (19.7 cm)

• Depth: 7.7 inches (19.7 cm)

• Weight (M1 Max): 5.9 pounds (2.7 kg)²

• Weight (M1 Ultra): 7.9 pounds (3.6 kg)²

Electrical and Operating Requirements

• Line voltage: 100–240V AC

• Frequency: 50Hz to 60Hz, single phase

• Maximum continuous power: 370W

• Operating temperature: 50° to 95° F (10° to 35° C)

• Storage temperature: –40° to 116° F (–40° to 47° C)

• Relative humidity: 5% to 90% noncondensing

• Operating altitude: tested up to 16,400 feet (5000 meters)
