Mac Studio M2 Max 3.68Ghz 12 CPU/30 GPU 32GB 512GB 2023 MQH73LL/A Grade (C)

Condition: "C" - Fair

TECH SPECS


Mac Studio (2023) - Technical Specifications

Year introduced: 2023

Identify your Mac Studio model

Finish

  • Silver

Chip

Apple M2 Max chip

  • 12-core CPU with 8 performance cores and 4 efficiency cores

  • 30-core GPU

  • 16-core Neural Engine

  • 400GB/s memory bandwidth

  • Media engine

    • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

    • Video decode engine

    • Two video encode engines

    • Two ProRes encode and decode engines

  • Configurable to:

    • M2 Max with 12-core CPU, 38-core GPU, and 16-core Neural Engine

Apple M2 Ultra chip

  • 24-core CPU with 16 performance cores and 8 efficiency cores

  • 60-core GPU

  • 32-core Neural Engine

  • 800GB/s memory bandwidth

  • Media engine

    • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

    • Two video decode engines

    • Four video encode engines

    • Four ProRes encode and decode engines

  • Configurable to:

    • M2 Ultra with 24-core CPU, 76-core GPU, and 32-core Neural Engine

Memory

Apple M2 Max chip

  • 32GB unified memory

    • Configurable to 64GB (M2 Max) or 96GB (M2 Max with 38‑core GPU)

Apple M2 Ultra chip

  • 64GB unified memory

    • Configurable to 128GB or 192GB

Storage

Apple M2 Max chip

  • 512GB SSD

    • Configurable to 1TB, 2TB, 4TB, or 8TB

Apple M2 Ultra chip

  • 1TB SSD

    • Configurable to 2TB, 4TB, or 8TB

Display Support

Apple M2 Max chip

  • Simultaneous support for up to five displays:

    • Four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 60Hz over HDMI

    • Two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI

Apple M2 Ultra chip

  • Simultaneous support for up to eight displays:

    • Eight displays with up to 4K resolution at 60Hz

    • Six displays with up to 6K resolution at 60Hz

    • Three displays with up to 8K resolution at 60Hz

  • Thunderbolt 4 digital video output

    • Support for native DisplayPort output over USB‑C

  • HDMI display video output

    • Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz

    • Support for variable refresh rate (VRR), HDR, and multichannel audio

Audio

  • Built-in speaker

  • 3.5 mm headphone jack with advanced support for high-impedance headphones

  • HDMI port supports multichannel audio output

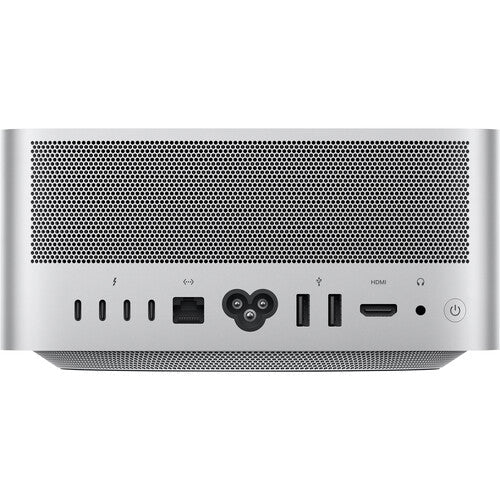

Connections and Expansion

No alt supplied for Image
No alt supplied for Image
  • Four Thunderbolt 4 ports with support for:

    • Thunderbolt 4 (up to 40Gb/s)

    • DisplayPort

    • USB 4 (up to 40Gb/s)

    • USB 3.1 Gen 2 (up to 10Gb/s)

    • Two USB-A ports (up to 5Gb/s)

    • HDMI port

    • 10Gb Ethernet

    • 3.5 mm headphone jack

  • On front (M2 Max):

    • Two USB-C ports (up to 10Gb/s)

    • SDXC card slot (UHS-II)

  • On front (M2 Ultra):

    • Two Thunderbolt 4 ports (up to 40Gb/s)

    • SDXC card slot (UHS-II)

Communications

Wi-Fi

  • Wi-Fi 6E (802.11ax)

Bluetooth

  • Bluetooth 5.3

Ethernet

  • 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Size and Weight

  • Height: 3.7 inches (9.5 cm)

  • Width: 7.7 inches (19.7 cm)

  • Depth: 7.7 inches (19.7 cm)

  • Weight (M2 Max): 5.9 pounds (2.7 kg)

  • Weight (M2 Ultra): 7.9 pounds (3.6 kg)

Electrical and Operating Requirements

  • Line voltage: 100–240V AC

  • Frequency: 50Hz to 60Hz, single phase

  • Maximum continuous power: 370W

  • Operating temperature: 50° to 95° F (10° to 35° C)

  • Storage temperature: –40° to 116° F (–40° to 47° C)

  • Relative humidity: 5% to 95% noncondensing

  • Operating altitude: tested up to 16,400 feet (5000 meters)

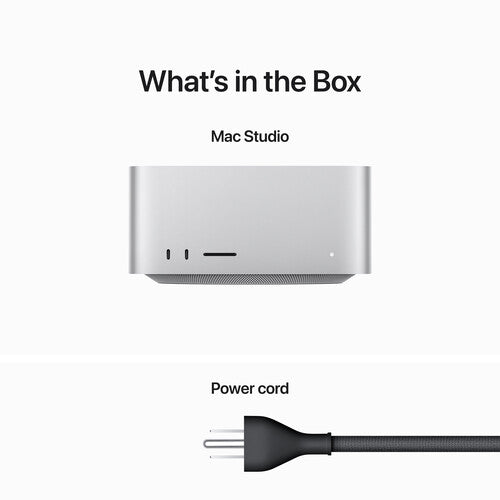

Included in Package
*Included in Box OEM or generic compatible AC adapter cable **Software/Apps Preinstalled: Most current MacOSx available for year model All Apple preinstalled Apps included with OSx version
