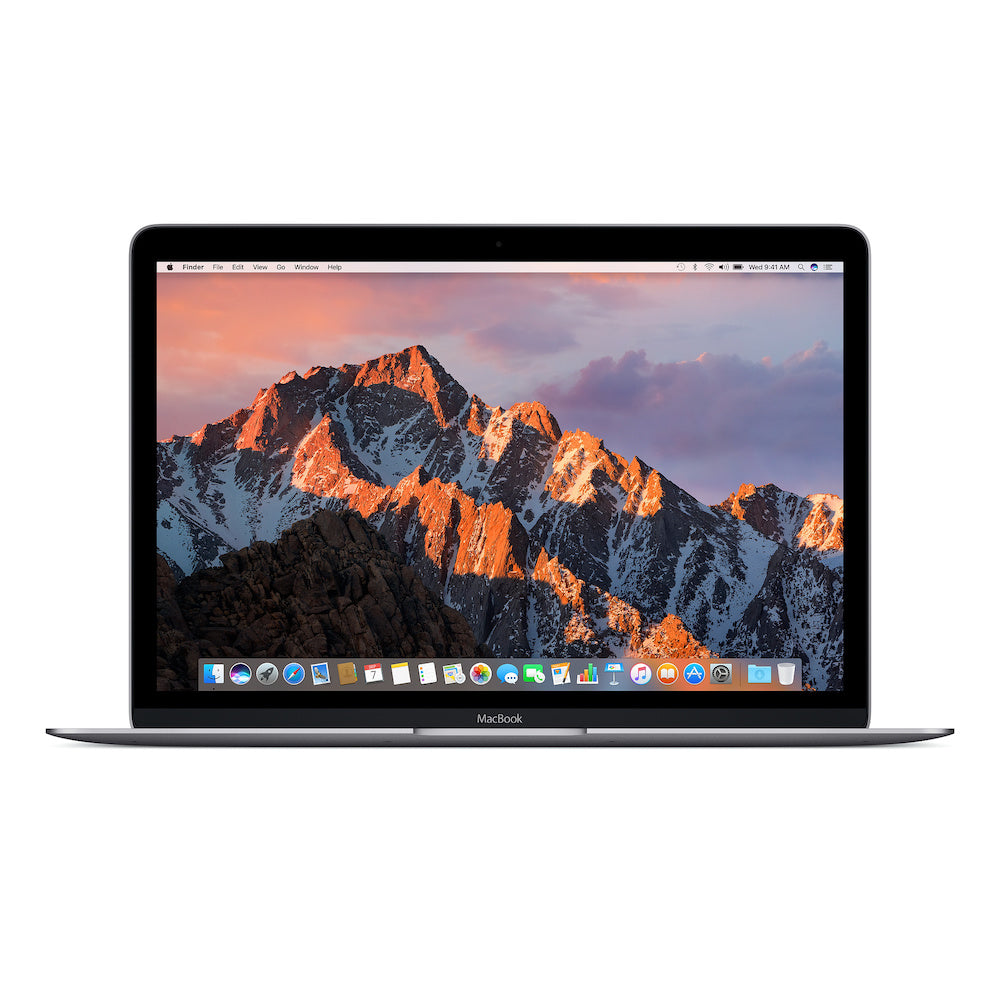

MacBook (Retina, 12-inch, 2017) - Technical Specifications

Finish

• Rose Gold

• Space Gray

• Gold

• Silver

Display

• Retina display

• 12-inch (diagonal) LED-backlit display with IPS technology

• 2304-by-1440 resolution at 226 pixels per inch with support for millions of colors

• 16:10 aspect ratio

• Supported scaled resolutions:

  • 1440 by 900

  • 1280 by 800

  • 1024 by 640

Processor

• 1.2GHz

  • 1.2GHz dual-core Intel Core m3, Turbo Boost up to 3.0GHz, with 4MB L3 cache

  • Configurable to 1.3GHz dual-core Intel Core i5, Turbo Boost up to 3.2GHz, with 4MB L3 cache; or 1.4GHz dual-core Intel Core i7, Turbo Boost up to 3.6GHz, with 4MB shared L3 cache

• 1.3GHz

  • 1.3GHz dual-core Intel Core i5, Turbo Boost up to 3.2GHz, with 4MB L3 cache

  • Configurable to 1.4GHz dual-core Intel Core i7, Turbo Boost up to 3.6GHz, with 4MB L3 cache

Memory

• 8GB of 1866MHz LPDDR3 onboard memory

  • Configurable to 16GB of memory

Storage

• 1.2GHz

  • 256GB PCIe-based onboard SSD¹

• 1.3GHz

  • 512GB PCIe-based onboard SSD¹

Size and Weight

• Height:0.14–0.52 inch (0.35–1.31 cm)

• Width:11.04 inches (28.05 cm)

• Depth:7.74 inches (19.65 cm)

• Weight:2.03 pounds (0.92 kg)²

Graphics and Video Support

• Intel HD Graphics 615

• Dual display and video mirroring: simultaneously supports full native resolution on the built-in display and up to 4096-by-2304 resolution at 60Hz on an external display, both at millions of colors

Wireless

• Wi-Fi

  • 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible

• Bluetooth

  • Bluetooth 4.2 wireless technology

Charging and Expansion

• USB-C port with support for:

  • Charging

  • USB 3.1 Gen 1 (up to 5 Gbps)

  • Native DisplayPort 1.2 video output

  • VGA output using USB-C VGA Multiport Adapter (sold separately)

  • HDMI video output using USB-C Digital AV Multiport Adapter (sold separately)

Camera

• 480p FaceTime camera

Audio

• Stereo speakers

• Dual microphones

• 3.5 mm headphone jack

Keyboard and Trackpad

• Full-size keyboard with:

• 78 (U.S.) or 79 (ISO) individual LED backlit keys, including 12 function keys and 4 arrow keys

• Ambient light sensor

• Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures

Battery and Power

• Up to 10 hours wireless web³

• Up to 12 hours iTunes movie playback³

• Up to 30 days of standby time³

• Built-in 41.4-watt-hour lithium-polymer battery

• 30W USB-C Power Adapter; USB-C power port

Electrical and Operating Requirements

• Line voltage: 100V–240V AC

• Frequency: 50Hz to 60Hz

• Operating temperature: 50° to 95° F (10° to 35° C)

• Storage temperature: -13° to 113° F (-25° to 45° C)

• Relative humidity: 0% to 90% noncondensing

• Operating altitude: tested up to 10,000 feet

• Maximum storage altitude: 15,000 feet

• Maximum shipping altitude: 35,000 feet

Operating System

macOS

macOS is the operating system that powers everything you do on a Mac. macOS Mojave brings new features inspired by its most powerful users but designed for everyone. So you can get more out of every click.

Accessibility

Accessibility features help people with disabilities get the most out of their new MacBook. With built-in support for vision, hearing, physical and motor skills, and learning and literacy, you can create and do amazing things.

Features include:

• VoiceOver

• Zoom

• Increase Contrast

• Reduce Motion

• Siri and Dictation

• Switch Control

• Closed Captions

• Text to Speech

Built-in Apps⁴

• Photos

• iMovie

• GarageBand

• Pages

• Numbers

• Keynote

• Siri

• Safari

• Mail

• FaceTime

• Messages

• Maps

• News

• Stocks

• Home

• Voice Memos

• Notes

• Calendar

• Contacts

• Reminders

• Photo Booth

• Preview

• iTunes

• Books

• App Store

• Time Machine

Acoustic Performance

Declared noise emission values in accordance with ECMA-109

1. L_WA,mis the mean A-weighted sound power level, rounded to the nearest 0.1 B.

2. L_pA,mis the mean A-weighted sound pressure level measured at the operator position (rounded to the nearest 1 dB).

3. 1 B (bel) = 10 dB (decibel)

4. K_vis the statistical adder for computing upper-limit of A-weighted sound power level.

5. The quantity,L_WA,c(formerly calledL_WAd) may be computed from the sum ofL_WA,mandK_v.

6. The Wireless web test browses 25 popular websites.

7. Configuration tested: 1.4GHz dual-core Intel Core i7 processor, 16GB memory, 512GB storage, Intel HD Graphics 615.
