MacBook Pro 16 inch 4.05Ghz M3 Max 16 CPU/40 GPU 1TB 2023 MUW63LL/A Grade (B)

Finish

• Space Black

• Silver

Chip

Apple M3 Pro chip

• 12-core CPU with 6 performance cores and 6 efficiency cores

• 18-core GPU

• Hardware-accelerated ray tracing

• 16-core Neural Engine

• 150GB/s memory bandwidth

• Media Engine

  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

  • Video decode engine

  • Video encode engine

  • ProRes encode and decode engine

  • AV1 decode

• Configurable to:

  • M3 Max with 14-core CPU and 30-core GPU (300GB/s memory bandwidth) or M3 Max with 16-core CPU and 40-core GPU (400GB/s memory bandwidth)

Apple M3 Max chip

• 14-core CPU with 10 performance cores and 4 efficiency cores, 16-core CPU with 12 performance cores and 4 efficiency cores

• 30-core GPU, 40-core GPU

• Hardware-accelerated ray tracing

• 16-core Neural Engine

• 300GB/s memory bandwidth

• Media Engine

  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

  • Video decode engine

  • Two video encode engines

  • Two ProRes encode and decode engines

  • AV1 decode

• Configurable to:

  • M3 Max with 16-core CPU and 40-core GPU (400GB/s memory bandwidth)

Display

Liquid Retina XDR display

• 16.2-inch (diagonal) Liquid Retina XDR display;¹3456-by-2234 native resolution at 254 pixels per inch

XDR (Extreme Dynamic Range)

• 1,000,000:1 contrast ratio

• XDR brightness: 1000 nits sustained full-screen, 1600 nits peak²(HDR content only)

• SDR brightness: 600 nits

Color

• 1 billion colors

• Wide color (P3)

• True Tone technology

Refresh rates

• ProMotion technology for adaptive refresh rates up to 120Hz

• Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz, 60.00Hz

Memory

Apple M3 Pro chip

• 18GB unified memory

  • Configurable to 36GB (M3 Pro or M3 Max with 14-core CPU) or 96GB (M3 Max with 14-core CPU) or 48GB, 64GB, or 128GB (M3 Max with 16-core CPU)

Apple M3 Max chip

• 36GB unified memory

  • Configurable to 96GB (M3 Max with 14-core CPU) or 48GB, 64GB, or 128GB (M3 Max with 16-core CPU)

Battery and Power³

• Up to 22 hours Apple TV app movie playback

• Up to 15 hours wireless web

• 100-watt-hour lithium-polymer battery³

• 140W USB-C Power Adapter

• USB-C to MagSafe 3 Cable

• Fast-charge capable with included 140W USB-C Power Adapter

Storage⁴

Apple M3 Pro chip

• 512GB SSD

  • Configurable to 1TB, 2TB, or 4TB; 8TB (M3 Max only)

Apple M3 Max chip

• 1TB SSD

  • Configurable to 2TB, 4TB, or 8TB

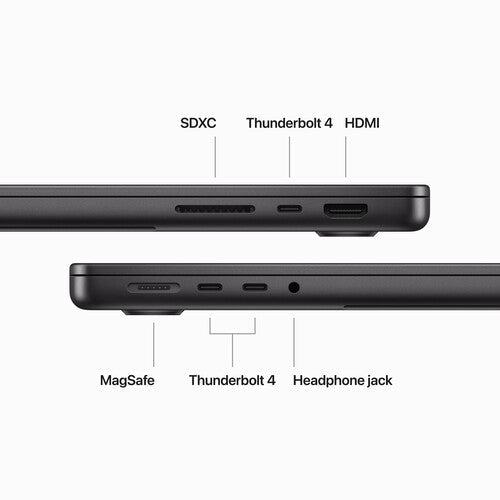

Charging and Expansion

• SDXC card slot

• HDMI port

• 3.5 mm headphone jack

• MagSafe 3 port

• Three Thunderbolt 4 (USB-C) ports with support for:

  • Charging

  • DisplayPort

  • Thunderbolt 4 (up to 40Gb/s)

  • USB 4 (up to 40Gb/s)

Display Support

M3 Pro

Simultaneously supports full native resolution on the built-in display at 1 billion colors and:

• Up to two external displays with up to 6K resolution at 60Hz over Thunderbolt, or one external display with up to 6K resolution at 60Hz over Thunderbolt and one external display with up to 4K resolution at 144Hz over HDMI

• One external display supported at 8K resolution at 60Hz or one external display at 4K resolution at 240Hz over HDMI

M3 Max

Simultaneously supports full native resolution on the built-in display at 1 billion colors and:

• Up to four external displays: Up to three external displays with 6K resolution at 60Hz over Thunderbolt and one external display with up to 4K resolution at 144Hz over HDMI

• Up to three external displays: Up to two external displays with 6K resolution at 60Hz over Thunderbolt and one external display with up to 8K resolution at 60Hz or one external display with 4K resolution at 240Hz over HDMI

Thunderbolt 4 digital video output

• Support for native DisplayPort output over USB‑C

HDMI digital video output

• Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz

Video Playback

• Supported formats include HEVC, H.264, AV1, and ProRes

• HDR with Dolby Vision, HDR10, and HLG

Audio Playback

• Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos

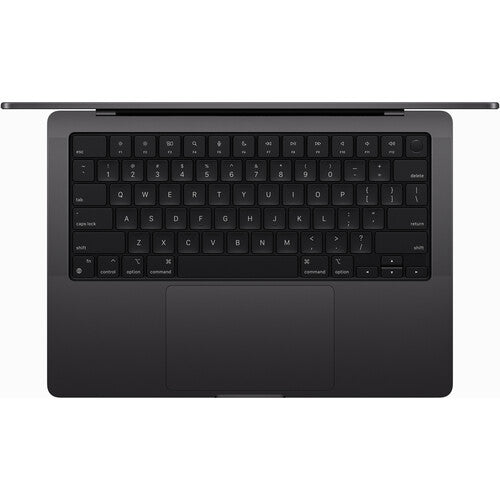

Keyboard and Trackpad

Backlit Magic Keyboard with:

• 78 (U.S.) or 79 (ISO) keys including 12 full-height function keys and 4 arrow keys in an inverted‑T arrangement

• Touch ID

• Ambient light sensor

• Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures

Wireless

Wi-Fi

• Wi-Fi 6E (802.11ax)⁵

Bluetooth

• Bluetooth 5.3

Camera

• 1080p FaceTime HD camera

• Advanced image signal processor with computational video

Audio

• High-fidelity six-speaker sound system with force-cancelling woofers

• Wide stereo sound

• Support for Spatial Audio when playing music or video with Dolby Atmos on built-in speakers

• Spatial Audio with dynamic head tracking when using AirPods (3rd generation), AirPods Pro, and AirPods Max

• Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming

• 3.5 mm headphone jack with advanced support for high-impedance headphones

• HDMI port supports multichannel audio output

Operating Requirements

• Line voltage: 100V to 240V AC

• Frequency: 50Hz to 60Hz

• Operating temperature: 50° to 95° F (10° to 35° C)

• Storage temperature: –13° to 113° F (–25° to 45° C)

• Relative humidity: 0% to 90% noncondensing

• Operating altitude: tested up to 10,000 feet (3000 meters)

• Maximum storage altitude: 15,000 feet

• Maximum shipping altitude: 35,000 feet

Size and Weight

• Height: 0.66 inch (1.68 cm)

• Width: 14.01 inches (35.57 cm)

• Depth: 9.77 inches (24.81 cm)

• Weight (M3 Pro): 4.7 pounds (2.14 kg)⁶

• Weight (M3 Max): 4.8 pounds (2.16 kg)⁶

Operating System

macOS

macOS is the most advanced desktop operating system in the world. And with macOS Sonoma, work and play on your Mac are even more powerful — with new ways to elevate your video presentations, boost your gaming performance, and personalize your device.

Accessibility

Accessibility features help people with disabilities get the most out of their new MacBook Pro. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.

Features include:

• Voice Control

• VoiceOver

• Zoom

• Increase Contrast

• Reduce Motion

• Siri and Dictation

• Switch Control

• Closed Captions

• Text to Speech

Built-in Apps⁷

• App Store

• Books

• Calendar

• Contacts

• FaceTime

• Find My

• Freeform

• GarageBand

• Home

• iMovie

• Keynote

• Mail

• Maps

• Messages

• Music

• News

• Notes

• Numbers

• Pages

• Photo Booth

• Photos

• Podcasts

• Preview

• QuickTime Player

• Reminders

• Safari

• Shortcuts

• Siri

• Stocks

• Time Machine

• TV

• Voice Memos
