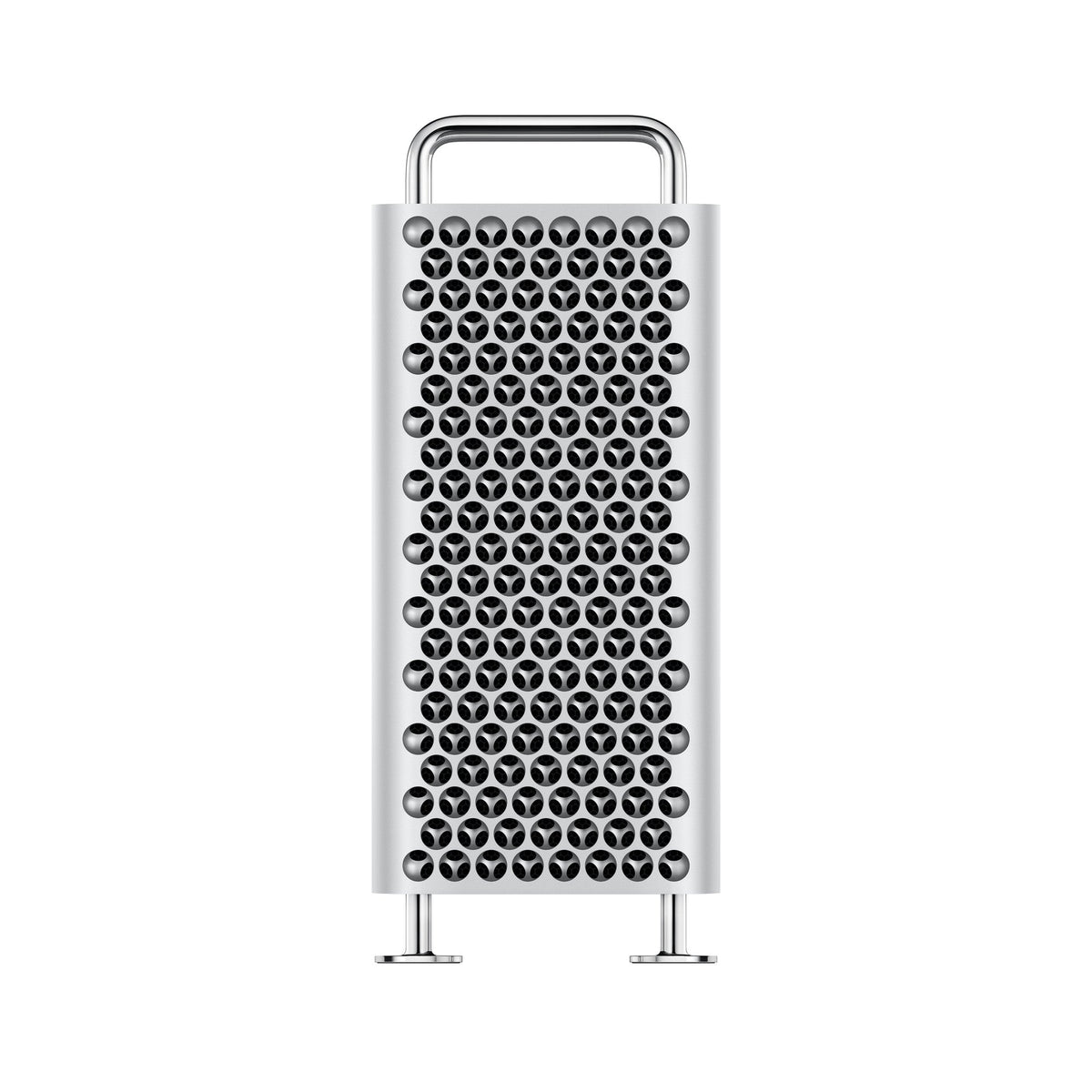

Mac Pro M2 Ultra 3.68Ghz 24-Core CPU/60-Core GPU 1TB 2023 BTO/CTO Rack (C)

Finish

• Silver

Chip

Apple M2 Ultra chip

• 24-core CPU with 16 performance cores and 8 efficiency cores

• 60-core GPU

• 32-core Neural Engine

• 800GB/s memory bandwidth

• Media engine

  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

  • Two video decode engines

  • Four video encode engines

  • Four ProRes encode and decode engines

• Configurable to:

  • M2 Ultra with 24-core CPU, 76-core GPU, and 32-core Neural Engine

Memory

• 64GB unified memory

  • Configurable to 128GB or 192GB

Storage¹

• 1TB SSD

  • Configurable to 2TB, 4TB, or 8TB

Display Support

• Simultaneous support for up to eight displays:

  • Eight displays with up to 4K resolution at 60Hz

  • Six displays with up to 6K resolution at 60Hz

  • Three displays with up to 8K resolution at 60Hz

• Thunderbolt 4 digital video output

  • Support for native DisplayPort output over USB-C

• HDMI display video output (per port)

  • Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz

  • Support for variable refresh rate (VRR), HDR, and multichannel audio

Audio

• Built-in speaker

• 3.5 mm headphone jack with advanced support for high-impedance headphones

• HDMI port supports multichannel audio output

Expansion

• Six full-length PCI Express gen 4 slots

  • Two x16 slots

  • Four x8 slots

• One half-length x4 PCI Express gen 3 slot with Apple I/O card installed

• 300W auxiliary power available:

  • Two 6-pin connectors delivering 75W of power each

  • One 8-pin connector delivering 150W of power

Connections

• Eight Thunderbolt 4 (USB-C) ports

  • Six ports on the back of the enclosure and two ports on the top of the tower enclosure or two ports on the front of the rack enclosure

  • Support for:

    • Thunderbolt 4 (up to 40Gb/s)

    • DisplayPort

    • USB 4 (up to 40Gb/s)

    • USB 3.1 Gen 2 (up to 10Gb/s)

• Internal connections

  • One USB-A port (up to 5Gb/s)

  • Two Serial ATA ports (up to 6Gb/s)

• Additional connections

  • Two USB-A ports (up to 5Gb/s)

  • Two HDMI ports

  • Two 10Gb Ethernet ports

  • 3.5 mm headphone jack

Communications

Wi-Fi

• Wi-Fi 6E (802.11ax)²

Bluetooth

• Bluetooth 5.3

Two 10Gb Ethernet ports

• 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Input Devices

• Magic Keyboard with Touch ID and Numeric Keypad

• Magic Mouse

• Optional Magic Trackpad

Enclosure

• Mac Pro tower enclosure with feet; configurable to tower with wheels

Size and Weight

• Height: 20.8 inches (52.9 cm)

• Height with optional wheels: 21.9 inches (55.7 cm)

• Width: 8.58 inches (21.8 cm)

• Depth: 17.7 inches (45.0 cm)

• Weight: 37.2 pounds (16.86 kg)³

Electrical and Operating Requirements

• Line voltage: 100–125V AC at 12A; 220–240V AC at 6A

• Frequency: 50Hz to 60Hz, single phase

• Maximum continuous power: 1280W at 108–125V or 220–240V; 1180W at 100–107V

• Operating temperature: 50° to 95° F (10° to 35° C)

• Storage temperature: –40° to 116° F (–40° to 47° C)

• Relative humidity: 5% to 95% noncondensing

• Maximum altitude: tested up to 16,400 feet (5000 meters)

• Typical acoustical performance: Sound pressure level (operator position): 5 dBA at idle⁴
