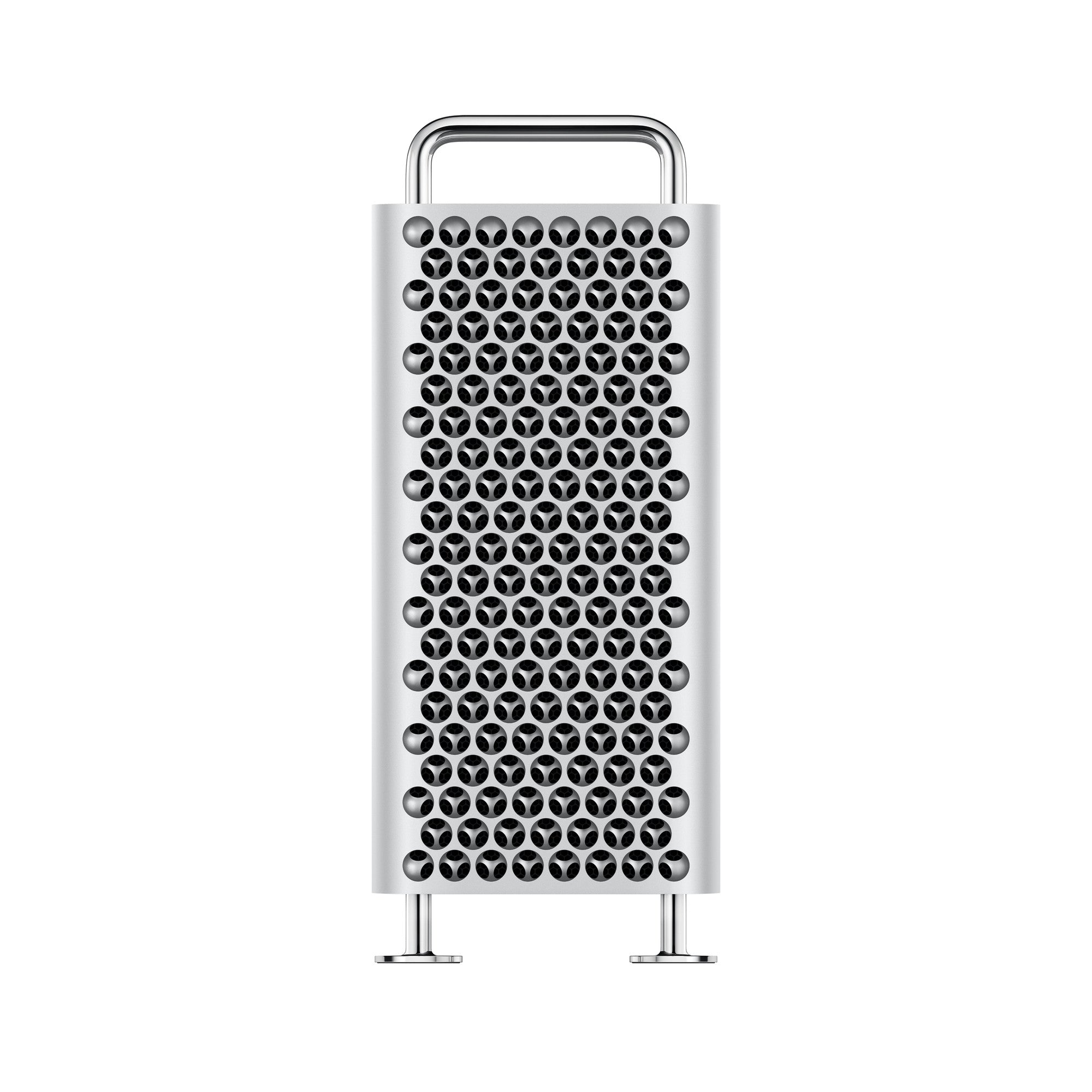

Mac Pro M2 Ultra 3.68Ghz 24-Core CPU/76-Core GPU 1TB 2023 BTO/CTO Rack (B)

Condition: "B" - Good

TECH SPECS

Finish

  • Silver

Chip

Apple M2 Ultra chip

  • 24-core CPU with 16 performance cores and 8 efficiency cores

  • 60-core GPU

  • 32-core Neural Engine

  • 800GB/s memory bandwidth

  • Media engine

    • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

    • Two video decode engines

    • Four video encode engines

    • Four ProRes encode and decode engines

  • Configurable to:

    • M2 Ultra with 24-core CPU, 76-core GPU, and 32-core Neural Engine

Memory

  • 64GB unified memory

    • Configurable to 128GB or 192GB

Storage1

  • 1TB SSD

    • Configurable to 2TB, 4TB, or 8TB

Display Support

  • Simultaneous support for up to eight displays:

    • Eight displays with up to 4K resolution at 60Hz

    • Six displays with up to 6K resolution at 60Hz

    • Three displays with up to 8K resolution at 60Hz

  • Thunderbolt 4 digital video output

    • Support for native DisplayPort output over USB-C

  • HDMI display video output (per port)

    • Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz

    • Support for variable refresh rate (VRR), HDR, and multichannel audio

Audio

  • Built-in speaker

  • 3.5 mm headphone jack with advanced support for high-impedance headphones

  • HDMI port supports multichannel audio output

Expansion

  • Six full-length PCI Express gen 4 slots

    • Two x16 slots

    • Four x8 slots

  • One half-length x4 PCI Express gen 3 slot with Apple I/O card installed

  • 300W auxiliary power available:

    • Two 6-pin connectors delivering 75W of power each

    • One 8-pin connector delivering 150W of power

Connections

  • Eight Thunderbolt 4 (USB-C) ports

    • Six ports on the back of the enclosure and two ports on the top of the tower enclosure or two ports on the front of the rack enclosure

    • Support for:

      • Thunderbolt 4 (up to 40Gb/s)

      • DisplayPort

      • USB 4 (up to 40Gb/s)

      • USB 3.1 Gen 2 (up to 10Gb/s)

  • Internal connections

    • One USB-A port (up to 5Gb/s)

    • Two Serial ATA ports (up to 6Gb/s)

  • Additional connections

    • Two USB-A ports (up to 5Gb/s)

    • Two HDMI ports

    • Two 10Gb Ethernet ports

    • 3.5 mm headphone jack

Communications

Wi-Fi

  • Wi-Fi 6E (802.11ax)2

Bluetooth

  • Bluetooth 5.3

Two 10Gb Ethernet ports

  • 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Input Devices

  • Magic Keyboard with Touch ID and Numeric Keypad

  • Magic Mouse

  • Optional Magic Trackpad

Enclosure

  • Mac Pro tower enclosure with feet; configurable to tower with wheels

Size and Weight

  • Height: 20.8 inches (52.9 cm)

  • Height with optional wheels: 21.9 inches (55.7 cm)

  • Width: 8.58 inches (21.8 cm)

  • Depth: 17.7 inches (45.0 cm)

  • Weight: 37.2 pounds (16.86 kg)3

Electrical and Operating Requirements

  • Line voltage: 100–125V AC at 12A; 220–240V AC at 6A

  • Frequency: 50Hz to 60Hz, single phase

  • Maximum continuous power: 1280W at 108–125V or 220–240V; 1180W at 100–107V

  • Operating temperature: 50° to 95° F (10° to 35° C)

  • Storage temperature: –40° to 116° F (–40° to 47° C)

  • Relative humidity: 5% to 95% noncondensing

  • Maximum altitude: tested up to 16,400 feet (5000 meters)

  • Typical acoustical performance: Sound pressure level (operator position): 5 dBA at idle4

Included in Package
*Included in Box OEM or generic compatible AC adapter cable **Software/Apps Preinstalled: Most current MacOSx available for year model All Apple preinstalled Apps included with OSx version
