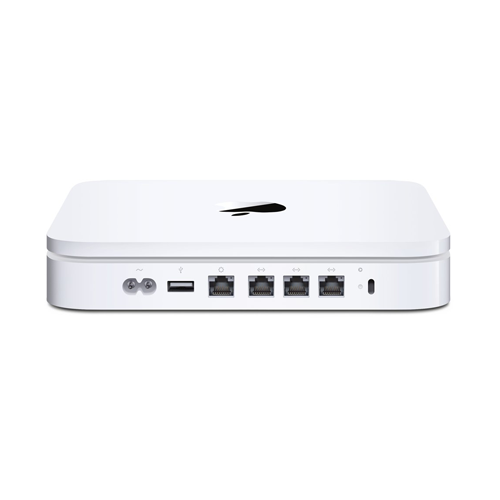

AirPort Time Capsule 4th Gen 2TB MD032LL/A Grade (B)

Condition: "B" - Good


Size and weight

  • Length: 7.7 inches (197 mm)

  • Width: 7.7 inches (197 mm)

  • Height: 1.4 inches (36.3 mm)

  • Weight: 3.5 pounds (1.6 kg)1


  • Wi-Fi Protected Access™ (WPA/WPA2)2

  • Wireless security (WEP) configurable for 40-bit and 128-bit encryption

  • MAC address filtering

  • NAT firewall

  • Support for RADIUS authentication


  • Time-based access control


  • Line voltage: 100-240V AC

  • Frequency: 50Hz to 60Hz, single phase

  • Maximum continuous power: 34W

Agency approvals

  • FCC Part 15 Class B, Canada RSS-210, EN 300-328, EN 301-489, EN 301 893, ARIB STD-T66, RCR STD-T33, AS/NZS 4268: 2003, UL 60950, CSA-C22.2 No. 60950


  • 2TB or 3TB Serial ATA server-grade hard disk drive3


  • One Gigabit Ethernet WAN port for connecting a DSL or cable modem

  • Three Gigabit Ethernet LAN ports for connecting computers or network devices

  • USB port for connecting a USB printer or USB external hard drive

  • 802.11n wireless

Included in the box

  • Time Capsule

  • Power cord

  • Printed documentation

Environmental requirements

  • Operating temperature: 50° to 95° F (10° to 35° C)

  • Storage temperature: -13° to 140° F (-25° to 60° C)

  • Relative humidity (operational): 20% to 80% (noncondensing)

  • Relative humidity (storage): 10% to 90%

  • Maximum operating altitude: 10,000 feet

  • Maximum storage altitude: 15,000 feet

Wireless protocols

  • IEEE 802.11a/b/g/n


  • Interoperable with Wi-Fi Certified 802.11a, 802.11b, 802.11g, or 802.11n enabled Mac computers, iPad, iPhone, iPod touch, and Windows-based PCs

  • NAT, DHCP, PPPoE, VPN Passthrough (IPSec, PPTP, and L2TP), DNS Proxy, SNMP, IPv6 (6to4 and manual tunnels)

Frequency bands

  • 2.4GHz and 5GHz simultaneously

Radio output power

  • 20 dBm (nominal)


  • Channels 1-11, 36-48, and 149-165 approved for use in the United States and Canada

  • Channels 1-13, 36-64, and 100-140 approved for use in Japan

  • Channels 1-13, 36-64, 100-112, and 132-140 approved for use in Europe

  • Channels 1-13, 36-64, and 149-165 approved for use in Australia, Hong Kong, and New Zealand

System Requirements

For Mac Users

For PC Users

For backup using Time Machine

Mac computer with Mac OS X 10.5.7 or later


For setup and administration

Mac with Mac OS X v10.5.7 or later

PC with Windows XP (SP3), Windows Vista (SP2), or Windows 7 (SP1)

For wireless client access

Mac with AirPort wireless capability

PC with Wi-Fi Certified 802.11a/b/g/n card

For shared printing with a USB printer

USB printer; Mac with Mac OS X v10.2.7 or later

USB printer; PC with Windows XP (SP3), Windows Vista (SP2), or Windows 7(SP1)

For AirPort Disk with a USB hard drive

Mac with Mac OS X v10.4.8 or later

PC with Windows XP (SP3), Windows Vista (SP2), or Windows 7(SP1)
