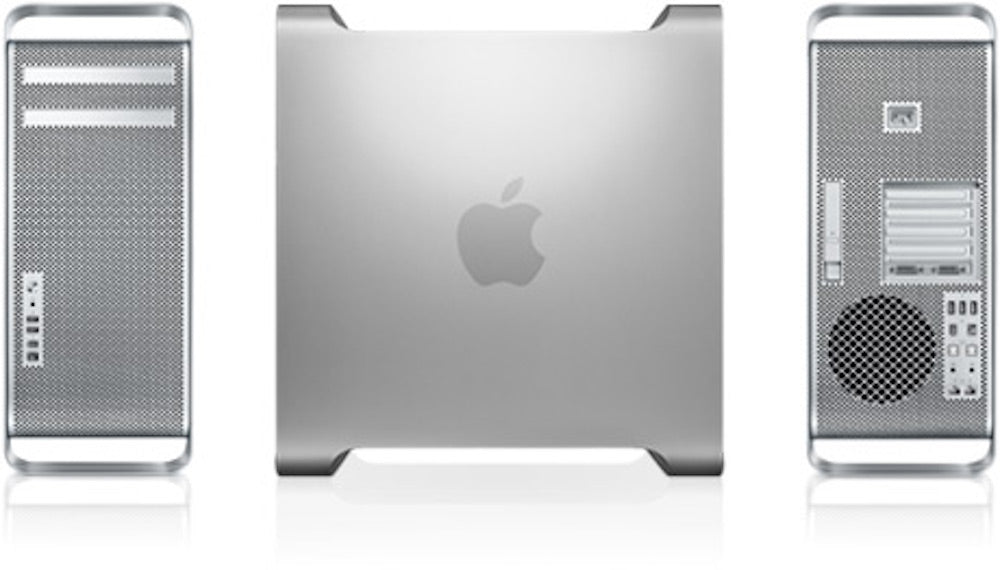

Mac Pro 3.2GHz Quad-Core Intel Xeon 1TB Mid 2012 MD770LL/A Grade (B)

Condition: "B" - Good

TECH SPECS

Size and weight

  • Height:20.1inches (51.1 cm)

  • Width:8.1inches (20.6 cm)

  • Depth:18.7inches (47.5 cm)

  • Weight:

    • 12-core41.2pounds (18.7 kg)1

    • Quad-core39.9pounds (18.1 kg)1

Processing

No alt supplied for Image
  • 12-core (standard configuration)

    • Two 2.4GHz 6-Core Intel Xeon E5645 processors

    • 12MB of fully shared L3 cache per processor

    • Turbo Boost dynamic performance up to 2.67GHz

    • Hyper-Threading technology for up to 24 virtual cores

  • Quad-core (standard configuration)

    • One 3.2GHz Quad-Core Intel Xeon W3565 processor

    • 8MB of fully shared L3 cache per processor

    • Turbo Boost dynamic performance up to 3.46GHz

    • Hyper-Threading technology for up to 8 virtual cores

  • Advanced Intel microarchitecture

    • Integrated memory controller

    • 128-bit SSE4 SIMD engine

    • 64-bit data paths and registers

    • Optimized for energy efficiency

Configure your Mac Pro now, only at theApple Online Store.

Connections and audio

  • Four FireWire 800 ports (two on front panel, two on back panel)

  • Five USB 2.0 ports (two on front panel, three on back panel)

  • Two USB 2.0 ports on included keyboard

  • Front-panel headphone minijack and internal speaker

  • Optical digital audio input and output TOSLINK ports

  • Analog stereo line-level input and output minijacks

  • Multichannel audio through Mini DisplayPort

Graphics and displays

  • Double-wide, 16-lane PCI Express 2.0 graphics slot with one of the following graphics cards installed:

    • ATI Radeon HD 5770 with 1GB of GDDR5 memory, PCI Express 2.0, two Mini DisplayPort outputs, and one dual-link DVI port

    • ATI Radeon HD 5870 with 1GB of GDDR5 memory, PCI Express 2.0, two Mini DisplayPort outputs, and one dual-link DVI port

  • Option to install two ATI Radeon HD 5770 cards

  • Support for up to six displays2

  • Support for digital resolutions up to 2560 by 1600 pixels

  • Support for analog resolutions up to 2048 by 1536 pixels

  • Video adapters available for:

    • Additional DVI output using Mini DisplayPort to DVI Adapter (optional)

    • Additional dual-link DVI output using Mini DisplayPort to Dual-Link DVI Adapter (optional)

    • VGA output using Mini DisplayPort to VGA Adapter or DVI to VGA Display Adapter (optional)

Memory

  • Dual-processor systems

    • 2.4GHz, 2.66GHz, and 3.06GHz systems: 1333MHz DDR3 ECC SDRAM

    • Eight memory slots (four per processor) supporting up to 64GB of main memory using 1GB, 2GB, 4GB, or 8GB DIMMs

  • Single-processor systems

    • 3.2GHz system: 1066MHz DDR3 ECC SDRAM

    • 3.33GHz system: 1333MHz DDR3 ECC SDRAM

    • Four memory slots supporting up to 32GB of main memory using 1GB, 2GB, 4GB, or 8GB DIMMs

Communications

  • Built-in AirPort Extreme 802.11n Wi-Fi wireless networking;3IEEE 802.11a/b/g compatible

  • Bluetooth 2.1 + Enhanced Data Rate (EDR) wireless technology

  • Two independent 10/100/1000BASE-T Ethernet (RJ-45) interfaces with support for jumbo frames

Environmental Status Report

  • BFR-free

  • PVC-free (internal cables)

  • Highly recyclable aluminum enclosure

  • Meets ENERGY STAR 5.2 requirements4

  • Rated EPEAT Gold5

Acoustic Performance

DECLARED NOISE EMISSIONS in accordance with ISO 9296

Sound Power Level

LWAd(B)

1 B = 10 dB

Sound Pressure Level, Operator Position

LpAm(dB)

2.4 GHz

3.2 GHz

2.4 GHz

3.2 GHz

Idle

3.5

3.7

25

26

Hard drive accessing

3.5

3.7

25

26

CD drive accessing

5.1

4.7

42

42

  1. LWAdis the statistical upper-limit A-weighted sound power level (rounded to the nearest 0.1 B).

  2. LpAmis the mean A-weighted sound pressure level measured at the operator position (rounded to the nearest dB).

  3. 1 B (bel) = 10 dB (decibel).

Electrical and operating requirements

  • Line voltage: 100-120V AC or 200-240V AC (wide-range power supply input voltage)

  • Frequency: 50Hz to 60Hz single phase

  • Current: Maximum of 12A (low-voltage range) or 5A (high-voltage range)

  • Operating temperature: 50° to 95° F (10° to 35° C)

  • Storage temperature: -40° to 116° F (-40° to 47° C)

  • Relative humidity: 5% to 95% noncondensing

  • Maximum operating altitude: 10,000 feet

PCI Express expansion

  • Three open full-length PCI Express expansion slots6

    • One PCI Express 2.0 x16 slot

    • Two PCI Express 2.0 x4 slots

  • All slots provide mechanical support for 16-lane cards

  • 300W combined maximum for all PCI Express slots

Storage

No alt supplied for Image
  • Four 3.5-inch cable-free, direct-attach drive bays with built-in independent 3Gb/s Serial ATA channels; four internal drive carriers included

  • Up to 8TB of internal storage7in bays 1 through 4 using hard drives or solid-state drives in the following capacities:

    • 1TB or 2TB hard drives, Serial ATA 3Gb/s, 7200 rpm, 32MB cache

    • 512GB solid-state drive, Serial ATA 3Gb/s

  • 18x SuperDrive with double-layer support (DVD±R DL/DVD±RW/CD-RW)

    • Writes DVD+R and DVD-R discs at up to 18x speed

    • Writes DVD+R DL and DVD-R DL discs at up to 8x speed

    • Writes DVD+RW discs at up to 8x speed

    • Writes DVD-RW discs at up to 6x speed

    • Reads DVDs at up to 18x speed

    • Writes CD-R and CD-RW discs at up to 32x speed

    • Reads CDs at up to 32x speed

  • One open optical drive bay for optional second SuperDrive

Included in Package
*Included in Box OEM or generic compatible AC adapter cable **Software/Apps Preinstalled: Most current MacOSx available for year model All Apple preinstalled Apps included with OSx version
