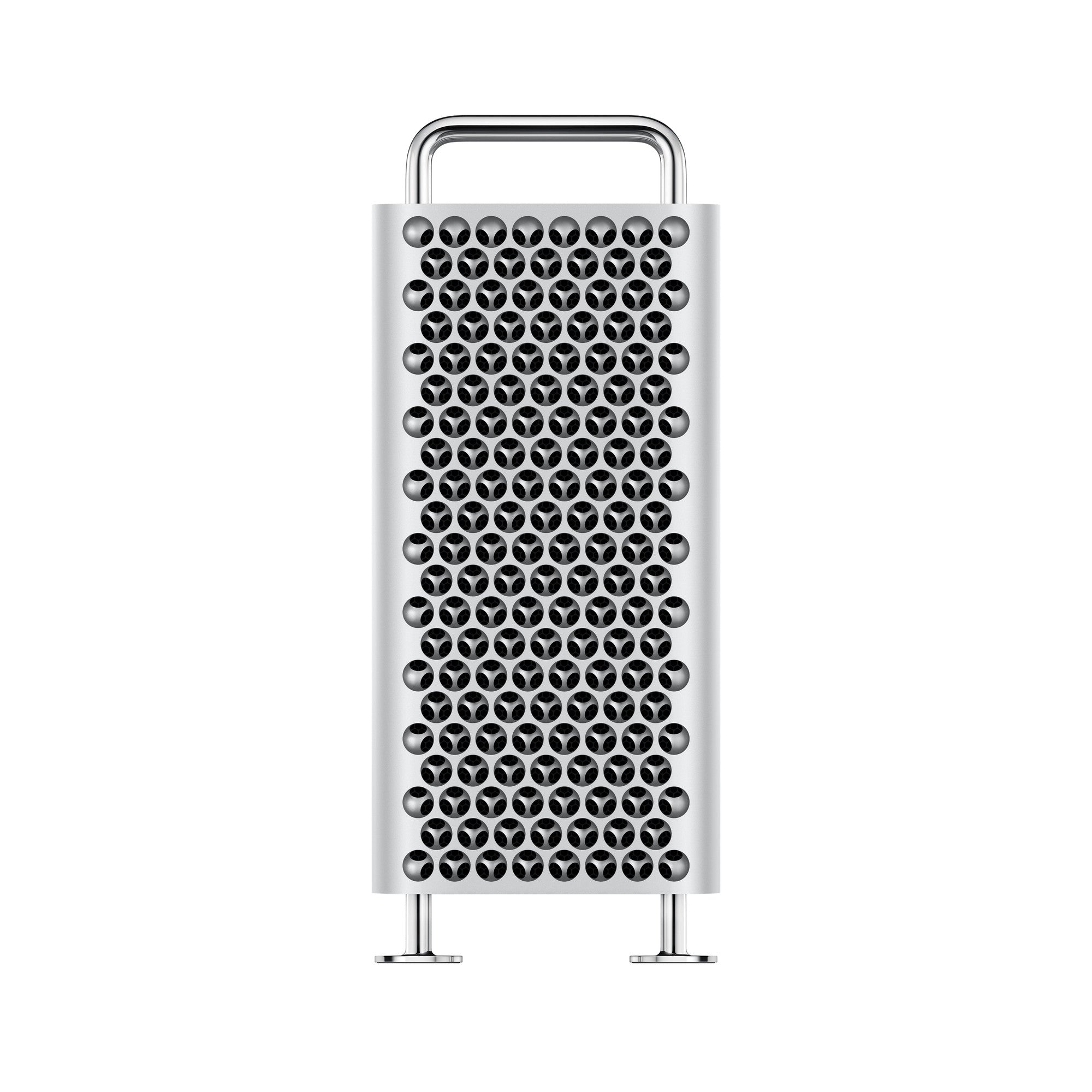

Mac Pro 3.3Ghz 12-Core Intel Xeon W3235 32GB RAM 256GB SSD 2019 BTO/CTO Grade (C)

Name: Mac Pro 3.3Ghz 12-Core Intel Xeon W3235 32GB RAM 256GB SSD 2019 BTO/CTO Grade (C)
Brand: Trade In
SKU: 179049
Price: 2499.99 USD
Availability: OutOfStock

$2,499.99

Condition: "C" - Fair

TECH SPECS

Processor

Configure from an 8‑core to 28‑core Intel Xeon W processor

8-Core
- 3.5GHz Intel Xeon W
- 8 cores, 16 threads
- Turbo Boost up to 4.0GHz
- 24.5MB cache
- Supports 2666MHz memory
12-Core
- 3.3GHz Intel Xeon W
- 12 cores, 24 threads
- Turbo Boost up to 4.4GHz
- 31.25MB cache
- Supports 2933MHz memory
16-Core
- 3.2GHz Intel Xeon W
- 16 cores, 32 threads
- Turbo Boost up to 4.4GHz
- 38MB cache
- Supports 2933MHz memory
24-Core
- 2.7GHz Intel Xeon W
- 24 cores, 48 threads
- Turbo Boost up to 4.4GHz
- 57MB cache
- Supports 2933MHz memory
28-Core
- 2.5GHz Intel Xeon W
- 28 cores, 56 threads
- Turbo Boost up to 4.4GHz
- 66.5MB cache
- Supports 2933MHz memory

Memory

Configure up to 1.5TB of DDR4 ECC memory in 12 user-accessible DIMM slots

32GB
- Four 8GB DIMMs
48GB
- Six 8GB DIMMs
96GB
- Six 16GB DIMMs
192GB
- Six 32GB DIMMs
384GB
- Six 64GB DIMMs
768GB
- Six 128GB DIMMs or 12 64GB DIMMs
1.5TB
- 12 128GB DIMMs
- Requires 24-core or 28-core processor.

8-core processor operates memory at 2666MHz.

12-core to 28-core processors operate memory at 2933MHz.

Graphics

Configure two MPX Modules with up to four GPUs

AMD Radeon Pro 580X
- 36 compute units, 2304 stream processors
- 8GB of GDDR5 memory
- Up to 5.6 teraflops single precision
- Two HDMI 2.0 ports on card
- Four DisplayPort connections routed to system to support internal Thunderbolt 3 ports
- Support for up to six 4K displays, two 5K displays, or two Pro Display XDRs
- Half-height MPX Module fits in an MPX bay and enables PCIe slot 2 for additional expansion
AMD Radeon Pro W5500X
- 24 compute units, 1536 stream processors
- 8GB of GDDR6 memory with 224GB/s memory bandwidth
- Up to 5.6 teraflops single precision or 11.2 teraflops half precision
- Two HDMI ports on card with support for 4K60
- Two DisplayPort connections routed to system to support internal Thunderbolt 3 ports
- Support for up to four 4K displays, one 5K display, or one Pro Display XDR
- Half-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
AMD Radeon Pro W5700X
- 40 compute units, 2560 stream processors
- 16GB of GDDR6 memory with 448GB/s memory bandwidth
- Up to 9.4 teraflops single precision or 18.9 teraflops half precision
- Four Thunderbolt 3 ports and one HDMI port on card with support for 4K60
- Two DisplayPort connections routed to system to support internal Thunderbolt 3 ports
- Support for Display Stream Compression (DSC)
- Support for up to six 4K displays, three 5K displays, or three Pro Display XDRs
- Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
AMD Radeon Pro Vega II
- 64 compute units, 4096 stream processors
- 32GB of HBM2 memory with 1TB/s memory bandwidth
- Up to 14.1 teraflops single precision or 28.3 teraflops half precision
- Infinity Fabric Link connection enables two Vega II GPUs to connect at up to 84GB/s
- Four Thunderbolt 3 ports and one HDMI 2.0 port on card
- Two DisplayPort connections routed to system to support internal Thunderbolt 3 ports
- Support for up to six 4K displays, three 5K displays, or two Pro Display XDRs
- Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
AMD Radeon Pro Vega II Duo
- Two Vega II GPUs, each with 64 compute units and 4096 stream processors
- 64GB of HBM2 memory (32GB per GPU), each with 1TB/s memory bandwidth
- Up to 28.3 teraflops single precision or 56.6 teraflops half precision
- Onboard Infinity Fabric Link connection connects the two Vega II GPUs at up to 84GB/s
- Four Thunderbolt 3 ports and one HDMI 2.0 port on card
- Four DisplayPort connections routed to system to support internal Thunderbolt 3 ports
- Support for up to eight 4K displays, four 5K displays, or four Pro Display XDRs
- Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
AMD Radeon Pro W6800X
- 60 compute units, 3840 stream processors
- 32GB of GDDR6 memory with 512GB/s memory bandwidth
- Up to 16.0 teraflops single precision or 32.0 teraflops half precision
- Infinity Fabric Link connection enables two W6800X GPUs to connect at up to 84GB/s in each direction
- Four Thunderbolt 3 ports and one HDMI port on card with support for 4K60
- Two DisplayPort connections routed to system to support internal Thunderbolt 3 ports
- Support for up to six 4K displays, three 5K displays, or three Pro Display XDRs
- Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
AMD Radeon Pro W6900X
- 80 compute units, 5120 stream processors
- 32GB of GDDR6 memory with 512GB/s memory bandwidth
- Up to 22.2 teraflops single precision or 44.4 teraflops half precision
- Infinity Fabric Link connection enables two W6900X GPUs to connect at up to 84GB/s in each direction
- Four Thunderbolt 3 ports and one HDMI port on card with support for 4K60
- Two DisplayPort connections routed to system to support internal Thunderbolt 3 ports
- Support for up to six 4K displays, three 5K displays, or three Pro Display XDRs
- Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
AMD Radeon Pro W6800X Duo
- Two W6800X GPUs, each with 60 compute units and 3840 stream processors
- 64GB of GDDR6 memory (32GB per GPU), each with 512GB/s memory bandwidth
- Up to 30.2 teraflops single precision or 60.4 teraflops half precision
- Onboard Infinity Fabric Link connection connects two W6800X GPUs at up to 84GB/s in each direction; external Infinity Fabric Link connection enables two W6800X Duo modules to connect four W6800X GPUs
- Four Thunderbolt 3 ports and one HDMI port on card with support for 4K60
- Four DisplayPort connections routed to system to support internal Thunderbolt 3 ports
- Support for up to eight 4K displays, four 5K displays, or six Pro Display XDRs
- Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
AMD Radeon Pro W6600X
- 32 compute units, 2048 stream processors
- 8GB of GDDR6 memory with 256GB/s memory bandwidth
- Up to 9.8 teraflops single precision or 19.6 teraflops half precision
- Two HDMI ports on card with support for 4K60
- Up to four DisplayPort connections routed to system to support internal Thunderbolt 3 ports
- Support for up to four 4K displays, one 5K display, or two Pro Display XDRs
- Half-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth

Power Supply

1.4 kilowatts

Maximum continuous power:
- 1280W at 108–125V or 220–240V
- 1180W at 100–107V

Expansion Slots

Eight PCI Express expansion slots

Two MPX Modules or up to four PCI Express card slots
- Each MPX bay provides:
  - x16 gen 3 bandwidth for graphics
  - x8 gen 3 bandwidth for Thunderbolt
  - DisplayPort video routing
  - Up to 500W power for an MPX Module
  Alternatively, each MPX bay can support:
  - One full-length, double-wide x16 gen 3 slot and one full-length, double-wide x8 gen 3 slot (MPX bay 1)
  - Or two full-length, double-wide x16 gen 3 slots (MPX bay 2)
  - Up to 300W auxiliary power via two 8-pin connectors
Three full-length PCI Express gen 3 slots
- One x16 slot; two x8 slots
- 75W auxiliary power available
One half-length x4 PCI Express gen 3 slot with Apple I/O card installed

Apple Afterburner

ProRes and ProRes RAW accelerator card

PCI Express x16 card
Accelerates ProRes and ProRes RAW codecs in Final Cut Pro, QuickTime Player X, and supported third-party apps
Supports system playback of up to 6 streams of 8K ProRes RAW or up to 23 streams of 4K ProRes RAW¹

Storage

Configure up to 8TB of SSD storage²

256GB SSD
- One 256GB module
512GB SSD
- One 512GB module
1TB SSD
- Two 512GB modules
2TB SSD
- Two 1TB modules
4TB SSD
- Two 2TB modules
8TB SSD
- Two 4TB modules

Up to 3.4GB/s sequential read and 3.4GB/s sequential write performance.

Storage encrypted by the Apple T2 Security Chip.

Input/Output

I/O card installed in the half-length x4 PCI Express slot with:

Two USB 3 ports
- Support for USB-A (up to 5Gb/s)
Two Thunderbolt 3 ports
- Support for Thunderbolt 3 (up to 40Gb/s)
- Support for USB-C (up to 10Gb/s)
- Support for DisplayPort
Two 10Gb Ethernet ports:
- Support for 10Gb Ethernet performance over copper cabling
- Support for Nbase-T industry standard: 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet link speeds using RJ-45 connectors

Additional Connections

Two Thunderbolt 3 ports on the top of the tower enclosure

Support for Thunderbolt 3 (up to 40Gb/s)
Support for USB-C (up to 10Gb/s)
Support for DisplayPort

Audio

Built-in speaker
3.5 mm headphone jack with headset support

Input Devices

Magic Keyboard with Numeric Keypad (silver and black)
Magic Mouse (silver and black)
Optional Magic Trackpad (silver and black)

Wireless

Wi-Fi
- 802.11ac Wi-Fi wireless networking
- IEEE 802.11a/b/g/n compatible
Bluetooth
- Bluetooth 5.0 wireless technology

Enclosure

Mac Pro tower enclosure with feet; configurable to tower with wheels

Dimensions

Height: 20.8 inches (52.9 cm)
Width: 17.7 inches (45.0 cm)
Depth: 8.58 inches (21.8 cm)
Height with optional wheels: 21.9 inches (55.7 cm)

Weight³

39.7 pounds (18.0 kg)

Electrical and Operating Requirements

Line voltage: 100–125V AC at 12A; 220–240V AC at 6A
Frequency: 50Hz to 60Hz, single phase
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: –40° to 116° F (–40° to 47° C)
Relative humidity: 5% to 95% noncondensing
Maximum altitude: tested up to 16,400 feet (5000 meters)

Included in Package

*Included in Box OEM or generic compatible AC adapter cable **Software/Apps Preinstalled: Most current MacOSx available for year model All Apple preinstalled Apps included with OSx version
